Vibrating Feeder-ZSW

The ZSW Series Vibrating Feeder is a high-performance equipment specifically designed for uniform and continuous feeding.

Feeding Size: ≤1000 mm Capacity: 80–800 t/h Power: 1.1×2–37 kw

Get Quotes Whatsapp Engineer

Material

Equipped with a double eccentric shaft vibrator, which delivers strong, stable vibration force. The feeding trough is welded from heavy-duty steel plates, offering a robust structure with strong impact resistance and wear durability. It is specially designed to withstand the impact of large falling rocks, such as those in quarry applications, ensuring a long service life.

Application

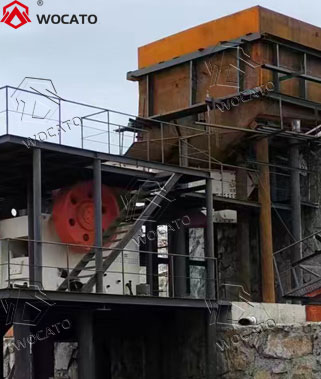

Utilizing a double eccentric shaft vibrator as the vibration source, it generates powerful and stable excitation force, ensuring smooth and even transportation of large, heavy bulk materials to the primary crusher.

Product Features

This effectively prevents material clogging and significantly enhances the overall processing capacity and efficiency of the entire production line. Its robust trough structure and reliable performance make it capable of withstanding harsh mining conditions, ideal for various primary crushing stations.

Ensures Line Efficiency: Uniform and continuous feeding is fundamental for crushers to perform at their best. The ZSW feeder effectively prevents crusher "idling" and "overloading", maximizing the productivity of the entire crushing system.

Reduces Operating Costs: The pre-screening function removes fines that don't require crushing, reducing the crusher's unnecessary work and wear, directly saving energy consumption and wear parts costs.

Robust & High ROI: The heavy-duty design and application of wear-resistant materials result in an exceptionally long service life and high Mean Time Between Failures (MTBF), minimizing downtime and replacement costs.

High Adaptability: Capable of effectively handling materials from damp clay to dry rock, the ZSW feeder offers strong adaptability to various materials, making it a reliable choice for multiple applications.

Easy Operation & Maintenance: Simple structure design with few maintenance points. The vibrator is easy to maintain with long lubrication intervals, making daily upkeep straightforward.

Separate soil, dust, and fine impurities from materials to purify target substances; also screen out large foreign particles to prevent clogging and wear in downstream equipment, thereby extending the lifespan of the entire production line.

Specification

Model	Feeding Size(mm)	Capacity(t/h)	Size of Through(mm)	Motor Power(kw)	Overall Dimensions (L×W×H, mm)
ZSW-700X3000	≤350	≤80	700X3000	3X2	3080X1376X1506
ZSW-860X3000	≤400mm	80-120	860X3000	11	3080X1536X1110

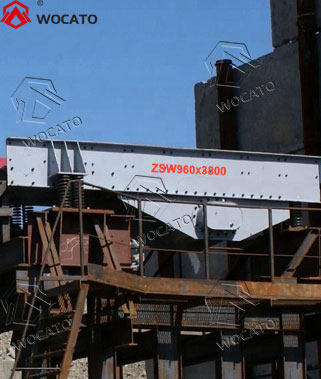

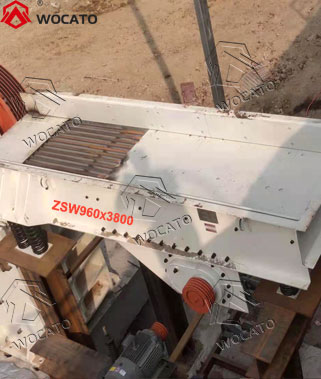

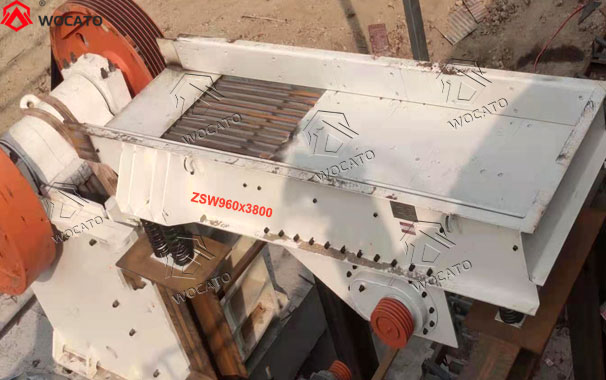

ZSW-960X3800	≤500mm	120-210	960X3800	11	3880X1600X1210

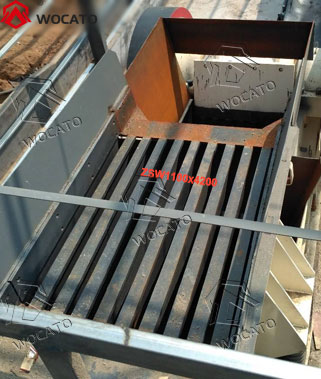

ZSW-1100X4200	≤580mm	200-430	1100X4200	15	4300X1776X1210

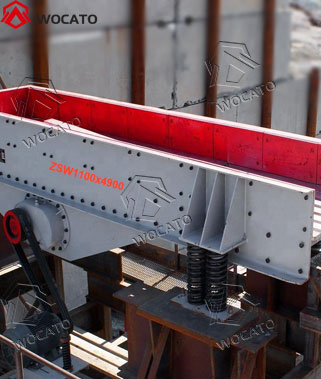

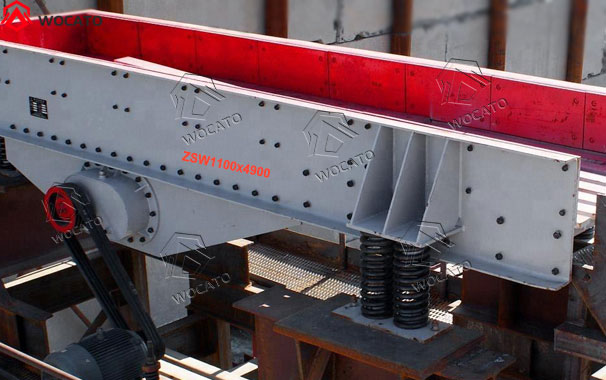

ZSW-1100X4900	≤580mm	280-500	1100X4900	22	5000X1804X1280
ZSW-1300X4900	≤650mm	450-600	1300X4900	30	5000X2000X1530
ZSW-1300X1600	≤700mm	450-680	1300X6000	37	6150X2120X1746
ZSW-1500X6000	≤1000mm	400-800	1500X6000	45	6150X2320X1748
