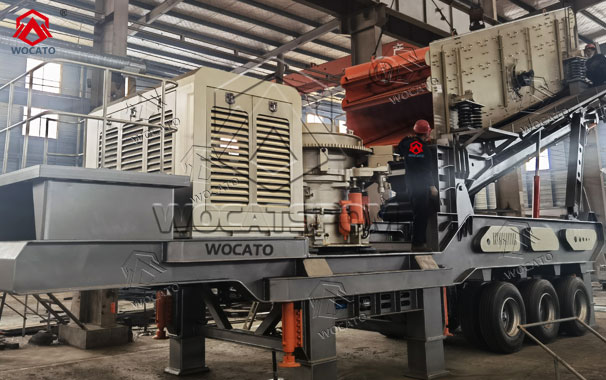

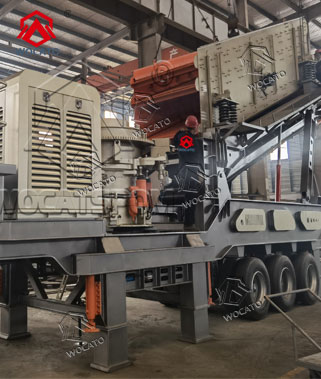

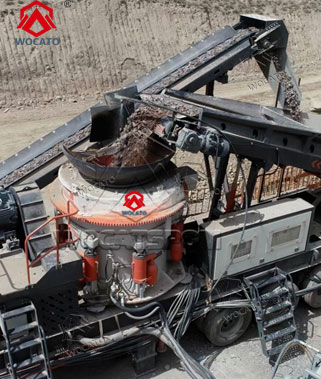

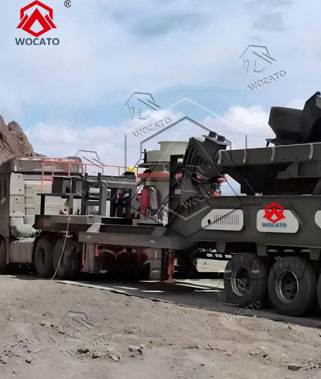

K3 Mobile Wheeled Cone Crusher

This mobile crusher is suitable for medium and fine crushing. It adopts a HP high-efficiency multi-cylinder hydraulic cone crusher, offering excellent crushing performance and is particularly suitable for hard rock.

Capacity: 50-500 t/h Feeding: ≤400 mm Output: ≥ 10 mm

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

Product Features

The Wheel-Mounted Cone Crusher is unique due to its self-return system. The HP multi-cylinder hydraulic cone crusher, along with the return system, is self-contained and can operate independently with an external power source or as part of a coarse crushing and screening system. Easy to install and flexible to move, achieving standardization, universality, and modularization to a greater extent, it is designed for secondary/tertiary crushing and screening purposes. It is ideal equipment for crushing medium- to hard stone for quarry aggregate production, as well as for raw material processing in the mining field.

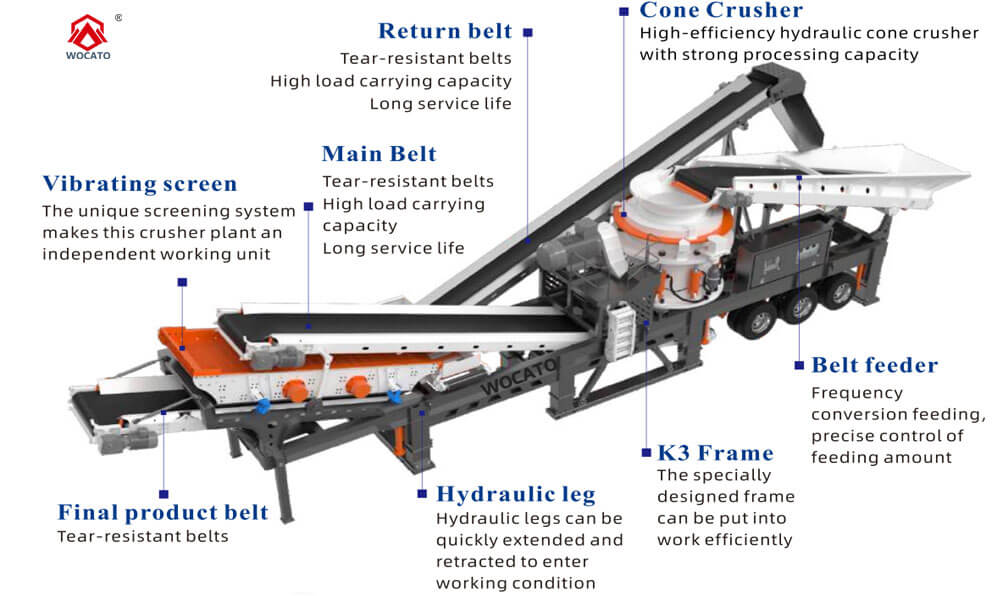

All-in-One Solution: Crush, Screen, Convey.

Compact structure & small footprint

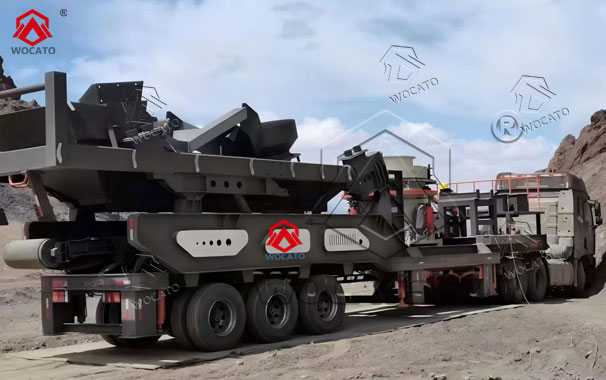

Compact, mobile, and easy to relocate via standard trailer truck

Quick into production,Fast return on investment

Hi-quality output 3-4 aggregates sizes

Suitable for medium-scale, quick transfer.

Specification

Model	K3-HP300RS-2C	K3-HP400RS-2C	K3-HP500RS-2C	K3-SH160RS-2C	K3-SH250RS-2C
Belt feeder	B1000	B1200	B1200	B800	B1000
Cone crusher	HP300	HP400	HP500	SH160	SH250
Vibrtating screen	YK1530	YK1640	YK1750	YK1530	YK1640
Main belt	B1000	B1200	B1200	B800	B1000
Capacity(t/h)	100-300	150-300	200-400	48-345	90-605
Model	K3-HP300-2C	K3-HP400-2C	K3-SH160-2C	K3-CS160-2C
Vibrating Screen	3YK2260	3YK2260	3YK2160	3YK2160
HP Hydraulic Cone Crusher	HP300	HP400	SH160	CS160
Conveyor Under Screen	B1000	B1000	B1000	B800
Capacity(t/h)	180-300	220-380	48-345	109-349
