K3 Mobile Wheeled 4-in-1 Crusher Plant

K3 4-in-1 Wheeled crushing plant combines feeding, primary & secondary crushing, screening, and conveying on one compact chassis, enabling fast deployment without permanent infrastructure.

Capacity: 50-250 t/h Feeding: Max850 mm Output: 0-5/12/19/25 mm Power: 55-90 kw

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

Product Features

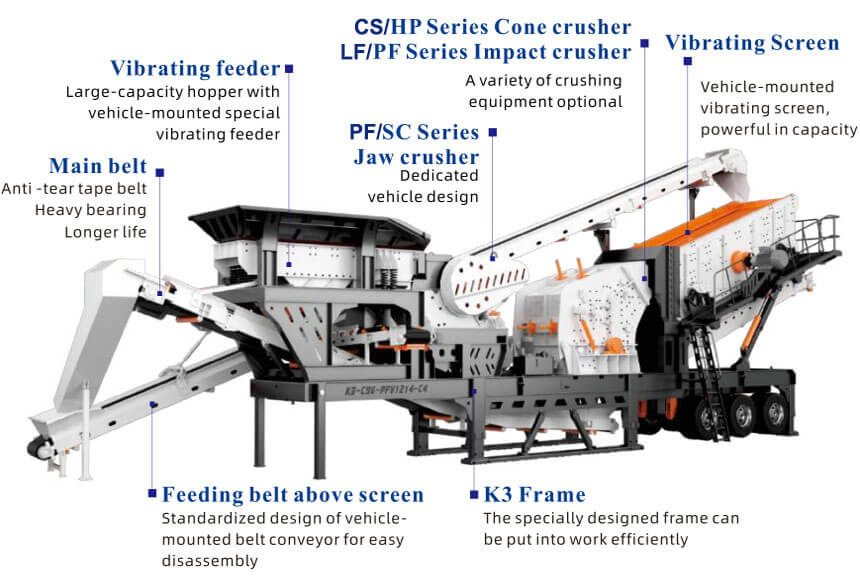

The Mobile K3 4-in-1 Wheeled crushing plant offers a compact, highly mobile solution for medium and large scale aggregate production. It integrates feeding, primary crushing and secondary crushing, screening equipment and belt convey on a single semi-trailer chassis, eliminating the need for permanent site infrastructure. The efficient layout maximizes material stacking space while ensuring smooth operation. Perfect for remote quarries and infrastructure projects, it delivers consistent, high-quality aggregates with rapid deployment and flexible operation.

All-in-One Solution: Crush, Screen, Convey. Easy to Use &Control.

Compact structure & small footprint

Compact, mobile, and easy to relocate via standard trailer truck

Quick into production,Fast return on investment

Hi-quality output 3-4 aggregates sizes

Provide customers with technical services on original products and spare parts to ensure worry-free operation.

Specification

Model	K3-PE46-CS75-4C	K3-PE57-CS75-4C	K3-PE57-CS110-4C	K3-C96-PF1214-4C	K3-C96-HP200-4C
Vibrating Feeder	GZD8630	GZD8630	GZD8630	GZD9638	GZD9638
Primary crushing	PE400*600	PE500*750	PE500*750	SC96	SC96
Secondary crushing	CS75	CS75	CS110	PFV1214	HP200
Vibrating Screen	3YZK1548	3YZK1848	4YZK1848	3YZK1848/4YZK1848	3YZK1848
Main Belt	B650(26"）	B800(32"）	B800(32"）	B800(32"）	B800(32"）
Capacity	30-60t/h	50-80t/h	80-150t/h	100-150t/h	100-150t/h

Model	K3-PE46-PEX2512-4C	K3-PE46-PYB900-4C	K3-C96-CH420-4C	K3-PE46-PF1010-4C	K3-PE57-PF1210-4C
Vibrating Feeder	GZD0730	GZD8630	GZD3896	GZD0730	GZD8630
Primary crushing	PE400*600	PE400*600	SC96	PE400*600	PE500x750
Secondary crushing	PEX250*1200	PYB900	CH420	PF1010	PF1210
Vibrating Screen	3YZK1548	3YZK1548	3YK1848	3YK1548	3YK1848
Main Belt	B650(26"）	B650(26"）	B800(32"）	B650(26"）	B800(32"）
Capacity	20-50t/h	30-60t/h	100-150t/h	30-60t/h	50-80t/h
