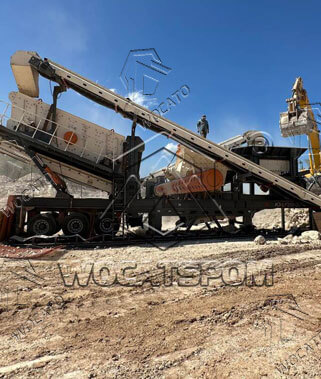

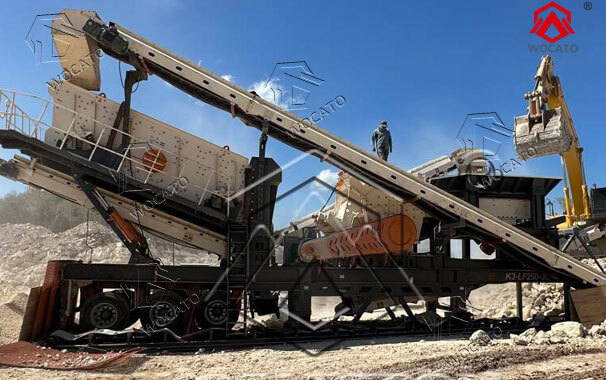

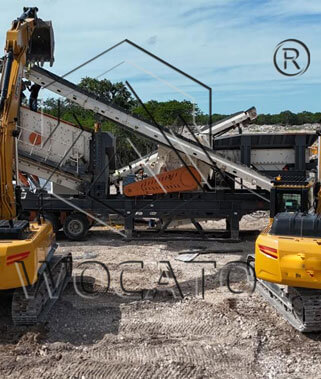

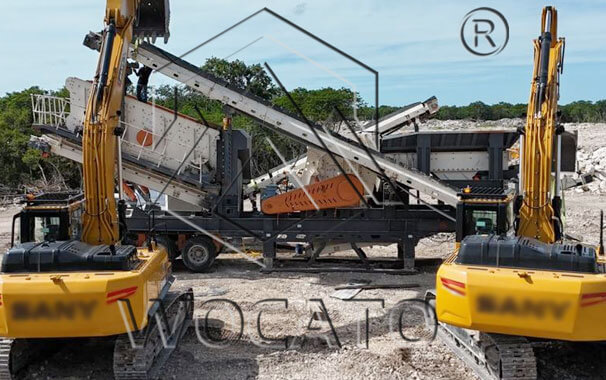

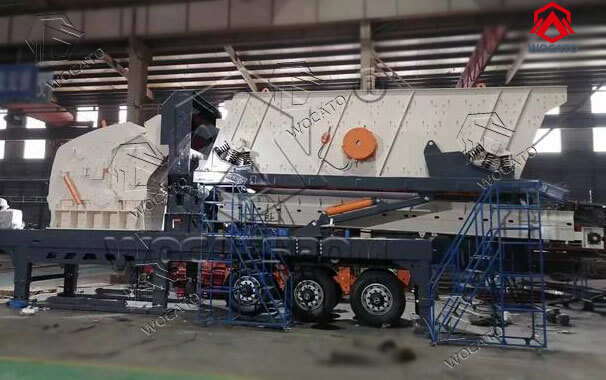

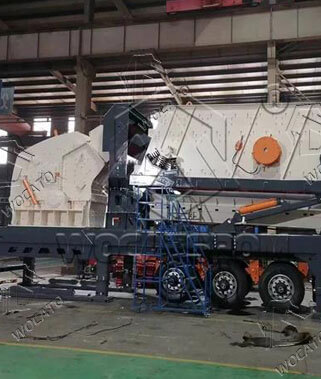

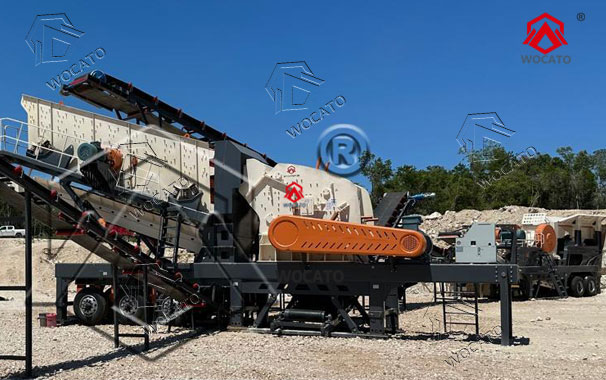

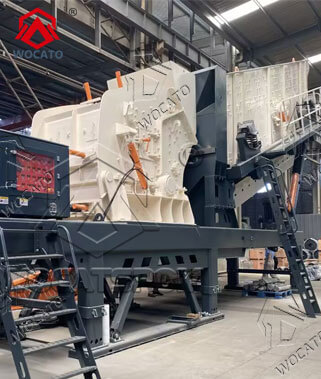

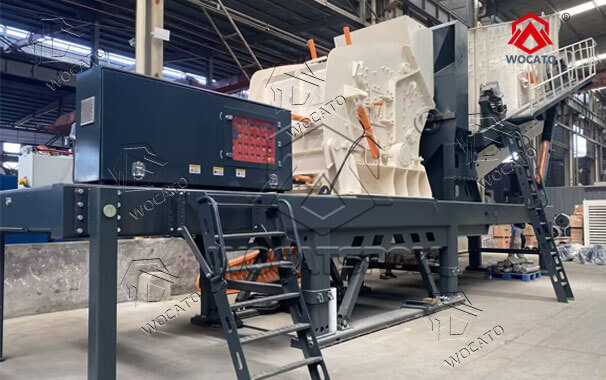

K3 Mobile Wheeled Impact Crusher

The Portable Wheel-Mounted Impact Crusher is suitable for soft rock crushing, which can form a complete crushing unit with primary crusher to meet the needs of different customers.

Capacity: 60~450 t/h Feeding: ≤750 mm Output: 0-5/12/19/25 mm(customizable)

Get Quotes Whatsapp Engineer

Material

Pebble, Calcite, Quartz, Concrete, Dolomite, Minerals, Limestone, Granite, Sandstone, Construction waste and 100+ materials

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

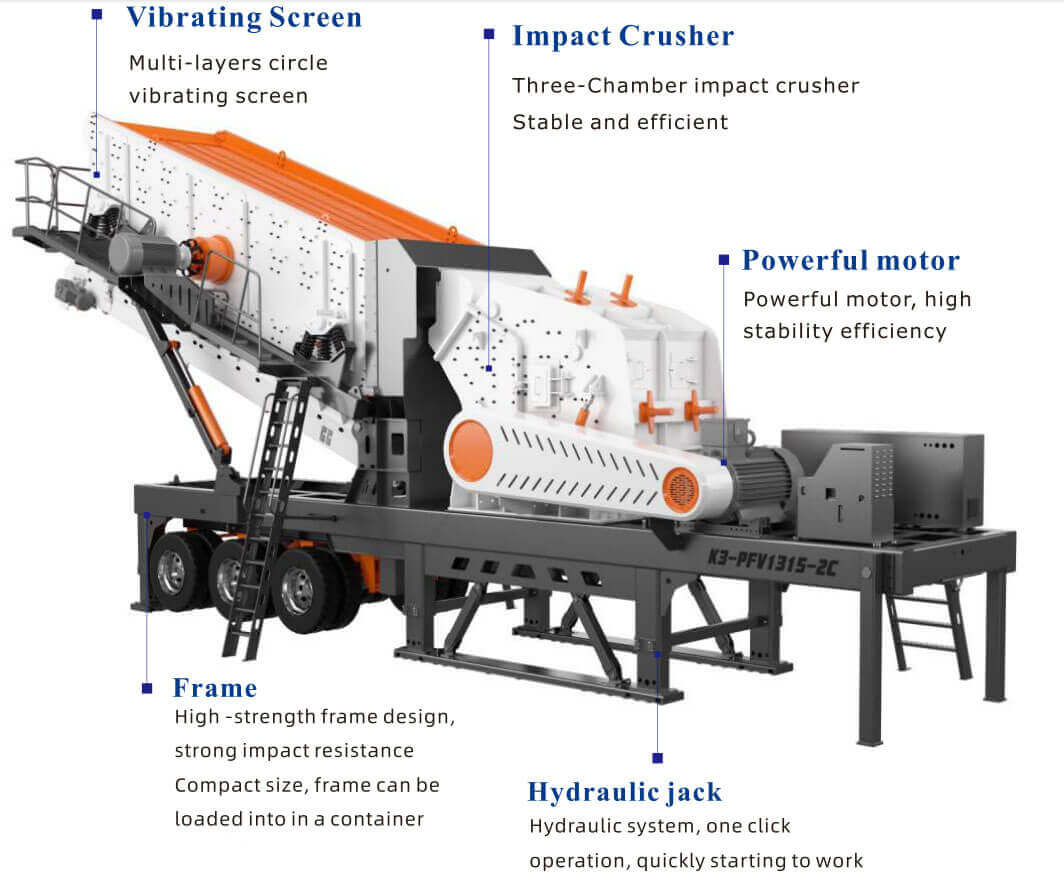

Product Features

The WOCATO K3 Wheeled Impact Crusher is a portable crushing plant designed for medium crushing and screening, primarily used for processing soft rocks. It features stable performance, easy mobility, quick installation, convenient maintenance, and integrated electrical control for a portable mobile plant. At the same time, by integrating crushing and screening into a single mobile plant, it provides users with more diverse modular solutions.

All-in-One Solution: Crush, Screen, Convey. Easy to Use &Control.

Compact structure & small footprint

Compact, mobile, and easy to relocate via standard trailer truck

Quick into production,Fast return on investment

Hi-quality output 3-4 aggregates sizes

Provide customers with technical services on original products and spare parts to ensure worry-free operation.

Specification

Model	K3-PFV1214-2C	K3-PFV1315-2C	K3-PFV1320-2C
Vibrating Screen	3YK1860	3YK2260	3YK2260
Impact Crusher	Pf1214	Pf1315	Pf1320
Conveyor Under Screen	B800(32")	B1000(40")	B1000(40")
Capacity (t/h)	100-200	130-280	180-400
Model	K3-LF150-2C	K3-LF250-2C	K3-LF350-2C
Vibrating feeder	GZD9638	GZD1142	ZSW1349
Impact crusher	LF150	LF250	LF350
Main belt	B800(32")	B1000(40")	B1200(47")
Capacity(t/h)	80-120	150-300	200-400
Model	K3-PF1214-3C	K3-LF150-3C	K3-LF250-3C
Vibrating feeder	GZD1142	GZD9638	GZD1142
Impact crusher	PFV1214	LF150	LF250
Vibrtaing screen	3YK1848	3YK1548	3YK1848
Main belt	B1000(40")	B800(32")	B1000(40")
Capacity(t/h)	100-200	80-150	150-300
Input size	300mm	500mm	700mm
