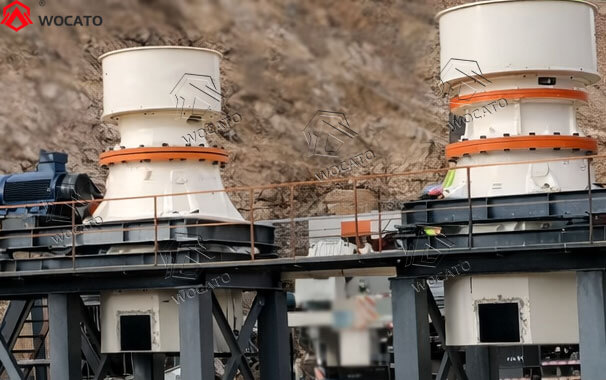

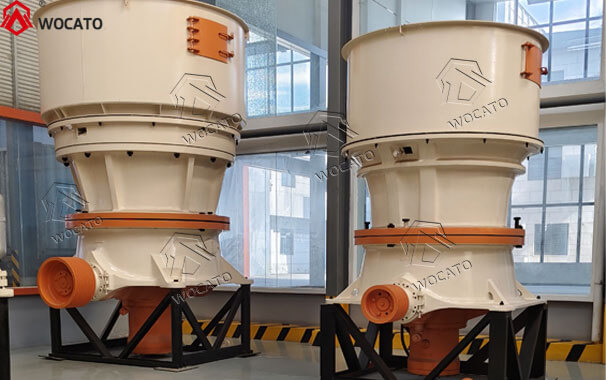

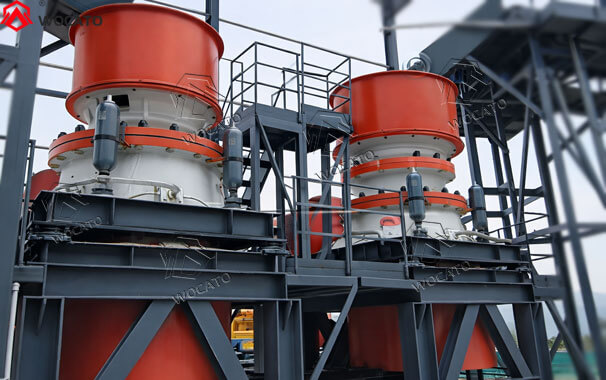

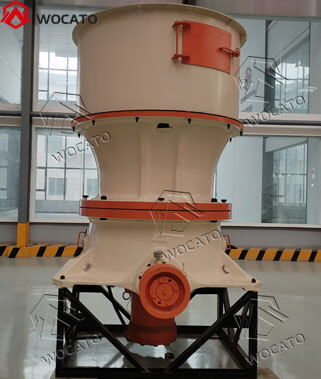

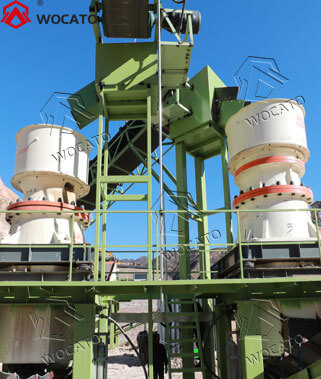

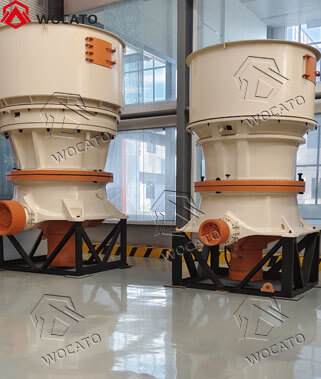

SH Single-Cylinder Hydraulic Cone Crusher

SH single cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively.

Capacity: 27-1050 t/h Feeding Size: Max ≤ 560 mm Power: Max 315 kw

Get Quotes Whatsapp Engineer

Material

It is suitable for crushing all kinds of ores and rocks with high and medium and above hardness.

Application

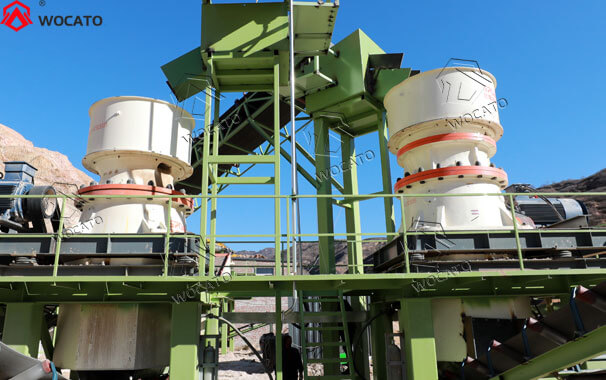

It's widely used in construction, water conservancy and electric power, transportation, chemistry and building materials industries, especially widely used in metal ore processing and sand-gravel construction material production.

Product Features

Simple structure, low failure rate, and easy maintenance

High-efficiency lamination crushing

Intelligent hydraulic control

Energy saving and environmental protection

Uniform output

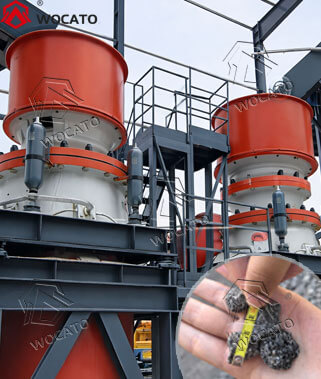

The finished product has a finer particle shape

Specification

Model	Cavity Type	Maximum Feed Inlet Size(mm)	Minimum Discharge Opening(mm)	Capacity(t/h)	Maximum Installed Power (kw)
SH100	S1(超粗) Extra coarse	240	22	85-170	90
SH100	S2(中粗) Medium coarse	200	19	70-130
SH100	H1(细) Fine	135	10	45-130
	H2(中细) Medium Fine	65	8	35-80
	H3（超细) Extra fine	38	4	27-60

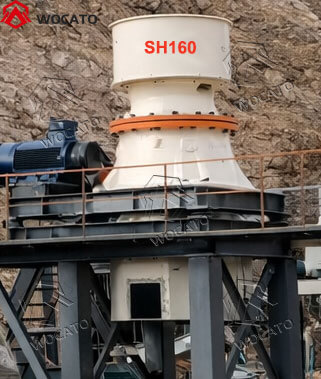

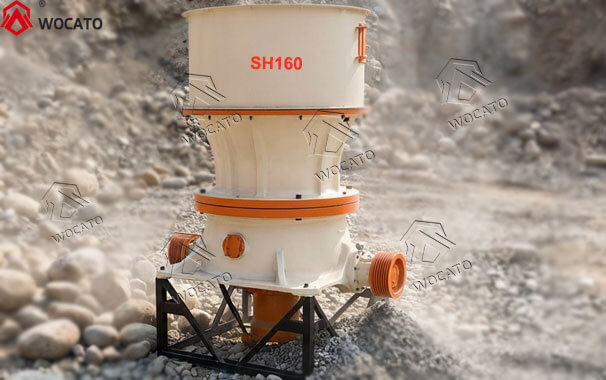

SH160	S1(超粗) Extra coarse	360	25	120-345	160
	S2(中粗) Medium coarse	300	22	105-305
	S3(粗) Coarse	235	19	90-275
SH160	H1(细) Fine	185	13	60-210
	H2(中细) Medium fine	90	10	65-165
	H3(超细) Extra fine	50	6	48-105
SH250	S1(超粗) Extra coarse	450	35	255-605	250
	S2(中粗) Medium coarse	400	29	215-515
	S3(粗) Coarse	300	25	190-490
SH250	H1(细) Fine	215	16	110-395
	H2(中细) Medium fine	110	13	115-340
	H3(超细) Extra fine	70	8	90-225
SH315	S1(超粗) Extra coarse	560	41	355-1050	315
SH315	S2(中粗) Medium coarse	500	38	305-895
SH315	H1(细) Fine	275	16	170-665
	H2(中细) Medium fine	135	16	190-505
	H3(超细) Extra fine	65	13	205-320
