K3 Mobile Wheeled 3-in-1 Crusher Plant

The three combination wheel-mounted crusher is designed to provide customers with the best crushing and screening solutions. which can easily and quickly transfer from site to site.
Capacity: 50~300 t/h Feeding: ≤950 mm Output: 0-5/12/19/25 mm(customizable)
Material
Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc
Application
widely used for crushing and screening limestone, mining waste, coal mines, recycling of waste and demolition debris, road and bridge construction, urban construction, metallurgy, energy, and more.

Product Features

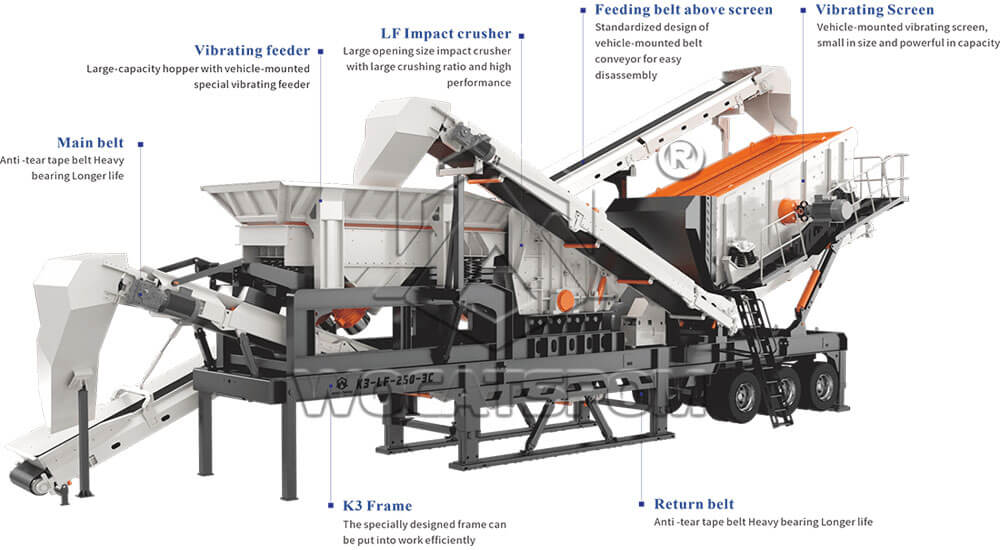

The K3 Mobile Wheeled Stone Crushing Plant is designed to provide customers with the best crushing and screening solutions. From the customer’s perspective, it efficiently integrates feeding, crushing, and screening equipment, effectively overcoming the site limitations of fixed crushing plants. With its modular vehicle design, it can be transported without disassembly and allows for greater raw material storage. The K3 Portable Crusher features fast installation and production, safety and environmental protection, a compact structure, and large production capacity. It can be flexibly configured for coarse or fine crushing, or combined into multi-stage (coarse, medium, fine) screening systems to meet diverse requirements. The K3 Portable Wheeled Crushing Plant includes the K3 Wheeled Jaw Crusher, K3 Wheeled Impact Crusher, K3 Wheeled Cone Crusher, K3 Wheeled VSI Sand Crusher, and K3 Portable Screening Plant.

All-in-One Solution: Crush, Screen, Convey. Easy to Use &Control.
Compact structure & small footprint
Compact, mobile, and easy to relocate via standard trailer truck
Quick into production,Fast return on investment
Hi-quality output 3-4 aggregates sizes
Provide customers with technical services on original products and spare parts to ensure worry-free operation.

Specification

ModelK3-PF1214-3CK3-LF150-3CK3-LF250-3C
Vibrating feederGZD1142GZD9638GZD1142
Impact crusherPFV1214LF150LF250
Vibrtaing screen3YK18483YK15483YK1848
Main beltB1000B800B1000
Capacity(t/h)100-20080-150150-300
Weight(t)625260
Input size300mm500mm700mm
Working size (L*W*H)18016*5116*7540mm18528*5425*7486mm18650*5361*7586mm
Wocatspom can provide customers with technical services on original products and spare parts to ensure worry-free operation.
