Semi-Mobile Skid Cone Crusher

Foundation-free installation saves time, can be transported as a whole machine, and is easy to move; simple structure, quick assembly!

Capacity: 30~500 t/h Feeding: ≤400 mm Output: ≥ 10 mm

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

Product Features

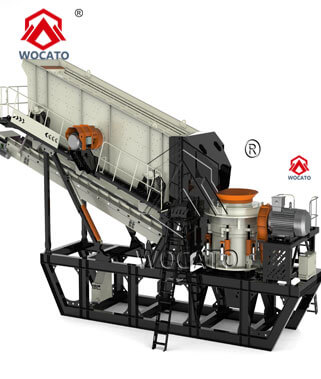

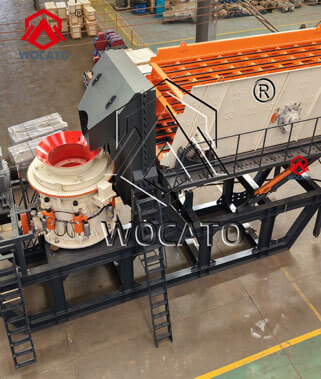

This skid-mounted cone crushing station features a high-performance cone crusher mounted on a rugged skid frame. It excels at secondary and tertiary crushing of hard and abrasive materials such as granite and basalt. The station provides precise particle size control, excellent cubical-shaped products, and low operating noise. Its modular design allows for easy installation and maintenance, making it suitable for quarries and large-scale construction sites.

Durable Structure: Heavy-duty frame ensures reliable performance in demanding environments.

Compact & Modular Design: Pre-assembled on a skid base for easy transport and installation;Quick Installation;“Plug-and-play” setup reduces installation time and site preparation

ost-Effective: Lower civil construction investment compared with traditional fixed plants.

Mobility & Relocation: Can be moved and redeployed more easily than stationary plants.

Versatility: Suitable for quarries, mining, construction waste recycling, and temporary projects.

Scalable Solution: Multiple skid units can be combined to handle larger capacity requirements.

Specification

Model	KM-HP300RS-2C	KM-HP400RS-2C	KM-HP500RS-2C	KM-SH160RS-2C	KM-SH250RS-2C
Belt feeder	B1000	B1200	B1200	B800	B1000
Cone crusher	HP300	HP400	HP500	SH160	SH250
Vibrtating screen	YK1530	YK1640	YK1750	YK1530	YK1640
Main belt	B1000	B1200	B1200	B800	B1000
Capacity(t/h)	100-300	150-300	200-400	48-345	90-605
Model	KM-HP300-2C	KM-HP400-2C	KM-SH160-2C	KM-CS160-2C
Vibrating Screen	3YK2260	3YK2260	3YK2160	3YK2160
HP Hydraulic Cone Crusher	HP300	HP400	SH160	CS160
Conveyor Under Screen	B1000	B1000	B1000	B800
Capacity(t/h)	180-300	220-380	48-345	109-349
