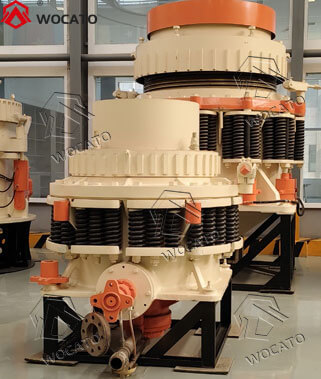

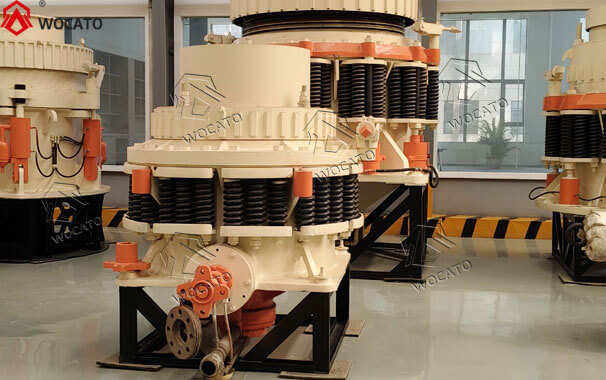

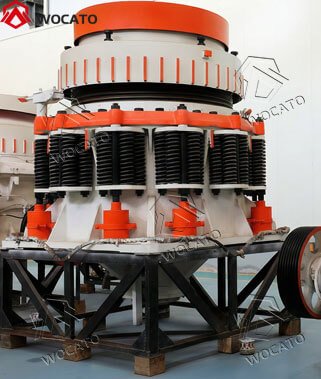

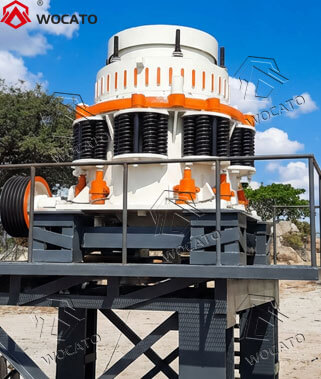

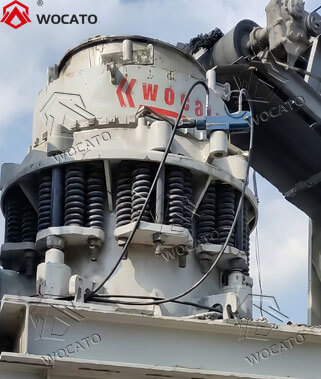

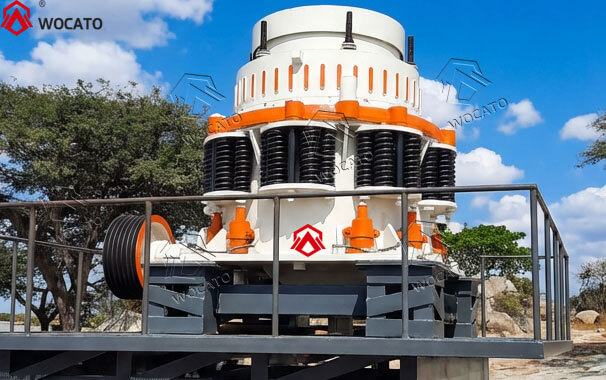

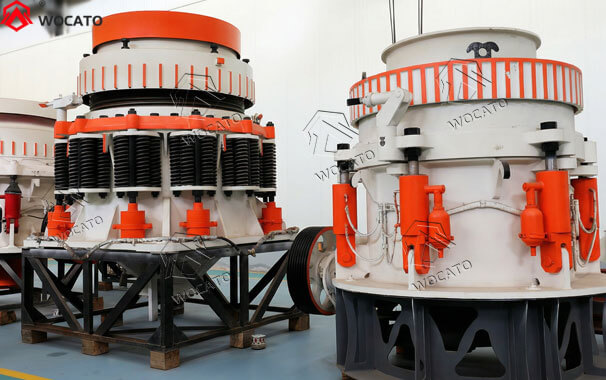

CS Series Spring Cone Crusher

The CS Series Spring Cone Crusher delivers high-efficiency secondary and fine crushing with stable performance and superior cubic-shaped product quality.

Capacity: 45-1270 t/h Feeding Size: Max ≤ 369 mm Power: Max 315 kw

Get Quotes Whatsapp Engineer

Material

It's suitable for crushing ores and rocks with medium and above hardness.

Application

It's widely used in the metallurgical industry, construction materials industry, chemical industry and silicate product industry.

Specification

Model	Movable Cone Diameter (mm)	Cavity Type	Feeding size(mm)		Discharging Opening Size(mm）	Main Shaft Speed(r/min)	Motor Power(kw）	Capacity(t/h)	Overall Dimension (mm)
			Shutting Size(mm)	Opening Size(mm)
CS75	910	Fine	83	102	9-22	580	75	45-91	2821×1880×2164
		Coarse	159	175	13-38			59-163
CS110	1200	Fine	127	131	9-31	485	110	63-188	2821×1974×2651
		Medium	156	156	13-38			100-200
		Coarse	178	191	19-51			141-308

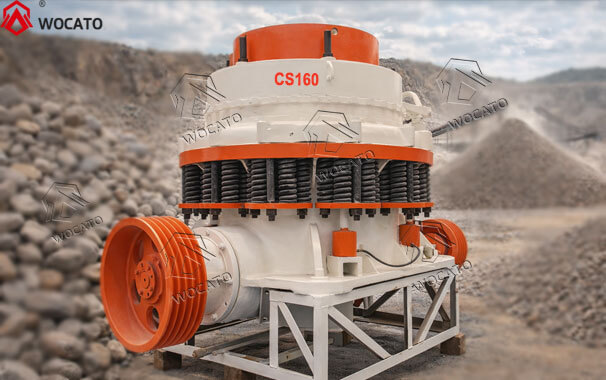

CS160	1295	Fine	109	137	13-31	485	160	109-181	2800×2342×2668
		Medium	188	310	16-38			132-253
		Coarse	216	241	19-91			172-349
CS220	1395	Fine	155	173	19-45	485	220	180-285	3360×2650×3050
		Medium	188	198	22-50			215-330
		Coarse	230	245	25-65			230-570
CS250	1650	Fine	188	209	16-38	485	250	181-327	3911×28700×3771
		Medium	213	241	22-51			220-417
		Coarse	241	268	25-64			299-635
CS315	2134	Fine	253	278	19-38	435	315	281-726	4631×3251×4732
		Medium	303	334	25-51			608-998
		Coarse	334	369	31-64			789-1270
