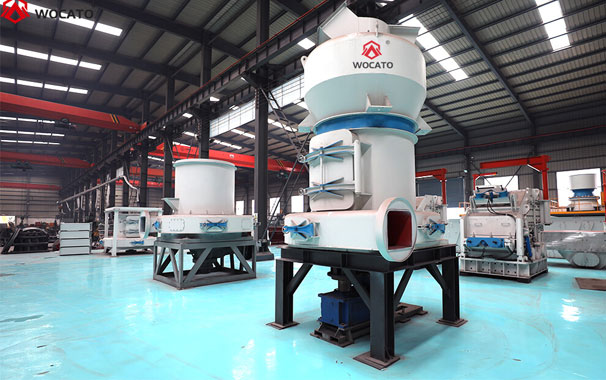

ZTM European Grinding Mill

ZTM European Version Mill is a product developed by our company on the basis of absorbing domestic and foreign grinding technologies and concepts, and has a number of innovative technologies.

Capacity: 0.5~40 t/h Feeding Size: ≤35 mm Output Size: 80~600 mesh Power: 37~250 kw

Get Quotes Whatsapp Engineer

Material

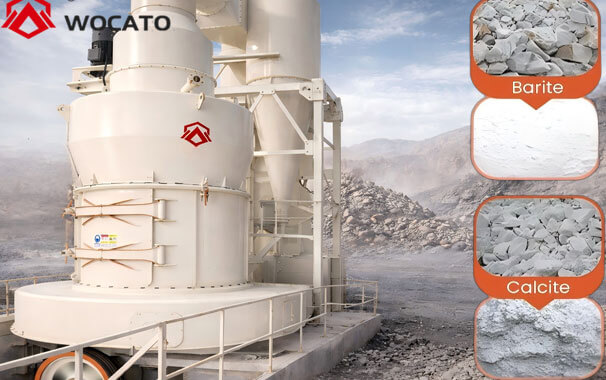

Non-flammable, brittle minerals with Mohs hardness ≤7 and moisture content ≤6%, including limestone, calcite, barite, feldspar, talc, bauxite, phosphate rock, marble, iron ore, dolomite, granite, bituminous coal, anthracite, lignite, kaolin, bentonite, gypsum, etc.

Application

It is ideal for high-efficiency powder grinding in power plant desulfurization, non-metallic ore processing, building materials, and chemical industries.

Specification

Model	Grinding Rollers(pcs)	Roller Diameter*height(mm)	Grinding Ring Diameter* height(mm)	Host Speed (RPM)	Max feeding size	Finished Particle size(mesh)	Capacity(t/h)	Dimensions LWH(mm)
ZTM100	4	φ310x170	φ950×170	132	≤25mm	80-600	0.5-6.5	7350×5800×7900
ZTM130	4/5	φ410×210	Φ1280×210	106	≤30mm	80-600	2.0-14.0	8000×8550×9700
ZTM140	4/5	φ460×240	φ1380×240	105	≤30mm	80-600	3.0-17.5	9700×8500×10200
ZTM160	5/6	φ450x280	φ1600×280	92	≤30mm	80-600	5.0-25	9230×10116×10510
ZTM180	4	φ600×300	Φ1800×300	78	≤35mm	80-600	6.5-32	9368×11500×11000
ZTM190	4	φ640×330	φ1950×330	72	≤35mm	80-600	8.5-40	10465×11372×11500

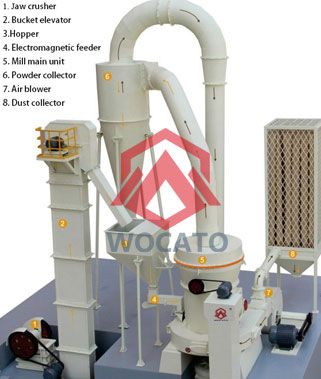

Model	Host Motor Power(KW)	Separator Motor Power(KW)	Induced Fan Motor Power (KW)	Dust Collector Model	Dust Collector Power(KW)	Air Compressor Power(KW)	Electromagnetic Vibrating Feeder Model	Electromagnetic Vibrating Feeder Power(KW)
ZTM100	37-45	5.5-11	30-37	DMC36	3	4	GZ2F	0.15
ZTM130	75-90	7.5-18.5	75-90	DMC36	3	4	GZ3F	0.2
ZTM140	90-110	22-30	110-132	DMC48	3	4	GZ3F	0.2
ZTM160	132-160	22-37	160-200	DMC64	5.5	5.5	GZ3F	0.2
ZTM180	185-200	37-45	200-220	DMC96	7.5	7.5	GZ4F	0.45
ZTM190	220-250	45-55	220-250	DMC96	7.5	7.5	GZ5F	0.65
