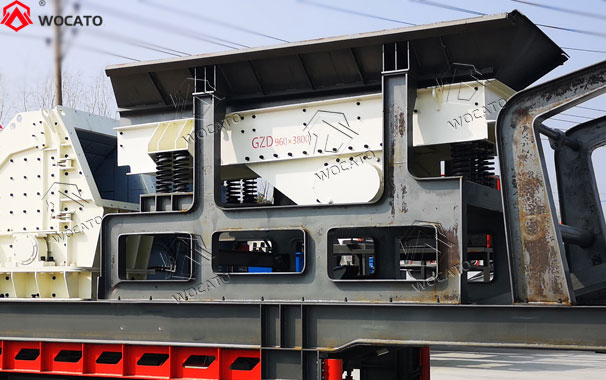

Vibrating Feeder-GZD

The GZD Series Vibrating Feeder is a high-performance equipment specifically designed for uniform and continuous feeding ahead ofprimary crushers, with an integrated pre-screening function.

Feeding: 300-≤1000 mm Capacity: 80–800 t/h Power: 1.1×2–37 kw

Get Quotes Whatsapp Engineer

Material

Equipped with a double eccentric shaft vibrator, which delivers strong, stable vibration force. The feeding trough is welded from heavy-duty steel plates, offering a rugged structure with strong impact resistance and wear durability. It is specially designed to withstand the impact of large falling rocks, such as those in quarry applications, ensuring a long service life.

Application

Utilizing a double eccentric shaft vibrator as the vibration source, it generates powerful and stable excitation force, ensuring smooth and even transportation of even large, heavy bulk materials to the primary crusher.

Product Features

This effectively prevents material clogging and significantly enhances the overall processing capacity and efficiency of the entire production line. Its robust trough structure and reliable performance make it capable of withstanding harsh mining conditions, ideal for various primary crushing stations.

Ensures Line Efficiency: Uniform and continuous feeding is fundamental for crushers to perform at their best. The ZSW feeder effectively prevents crusher "idling" and "overloading", maximizing the productivity of the entire crushing system.

Reduces Operating Costs: The pre-screening function removes fines that don't require crushing, reducing the crusher's unnecessary work and wear, directly saving energy consumption and wear parts costs.

Robust & High ROI: The heavy-duty design and application of wear-resistant materials result in an exceptionally long service life and high Mean Time Between Failures (MTBF), minimizing downtime and replacement costs.

High Adaptability: Capable of effectively handling materials from damp clay to dry rock, the ZSW feeder offers strong adaptability to various materials, making it a reliable choice for multiple applications.

Easy Operation & Maintenance: Simple structure design with few maintenance points. The vibrator is easy to maintain with long lubrication intervals, making daily upkeep straightforward.

Separate soil, dust, and fine impurities from materials to purify target substances; also screen out large foreign particles to prevent clogging and wear in downstream equipment, thereby extending the lifespan of the entire production line.

Specification

Model	Feeding size(mm)	Capacity(t/h)	Size of Through(mm)	Motor Power(kw)	Overall Dimension(mm)	Notes

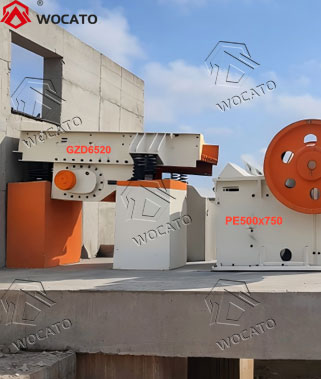

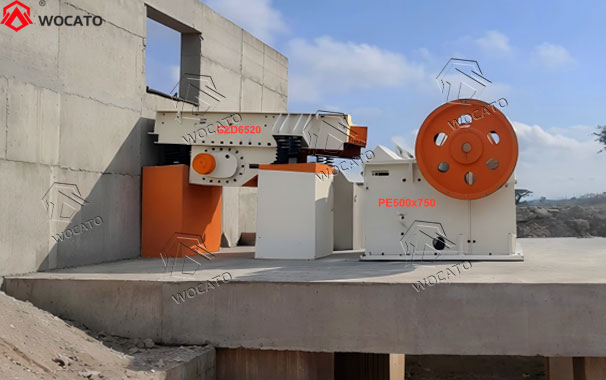

GZD6520	≤120mm	200	650X2000	1.1*2	2021X1110X1021	Support type
GZD0820	≤180mm	250	800X2000	1.5*2	2020X1260X1073

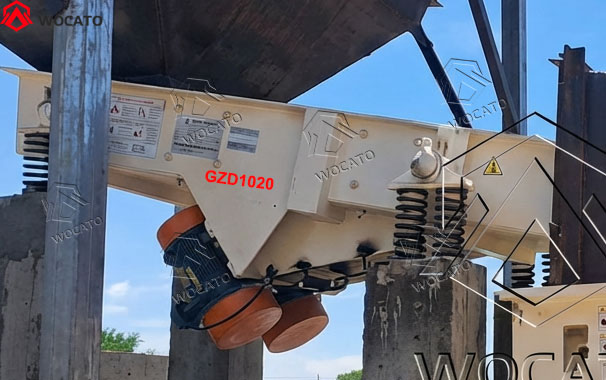

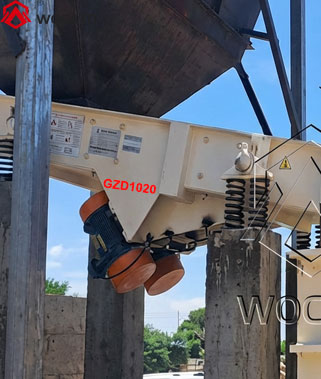

GZD1020	≤300mm	300	1000X2000	1.5*2	2016X1540X1137
GZD1220	≤300mm	500	1200X2000	2.2*2	2015X1740X1312
GZD6520	≤120mm	200	650X2000	1.1*2	2127X848X951	Lifting type
GZD0820	≤180mm	250	800X2000	1.5*2	2127X998X1010
GZD1020	≤300mm	300	1000X2000	1.5*2	2125X1198X992
GZD1220	≤300mm	500	1200X2000	2.2*2	2124X1398X1145
