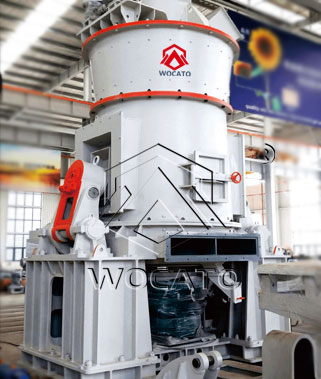

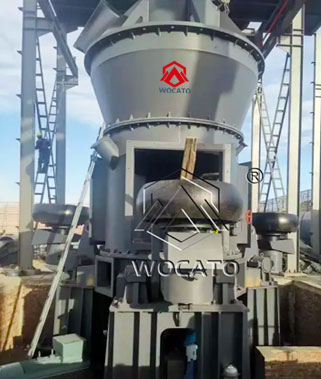

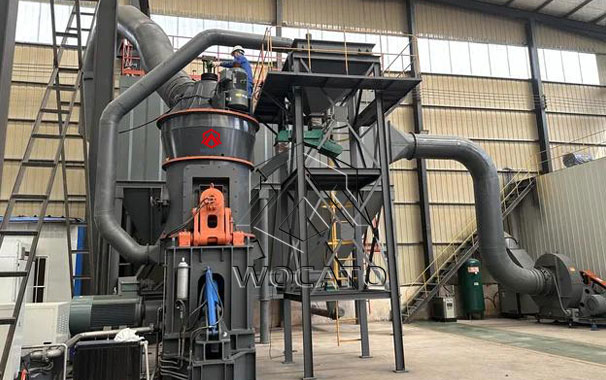

ZLM Vertical Mill

ZLM Vertical Mill integrating ultrafine powder grinding, grading , drying and conveying has become a better choice in the ultrafine powder grinding industry. powder production grinding (80~400 mesh)

Feeding Size: ≤50 mm Capacity: 5~90 t/h Output Size: 80~400 mesh Power: 110~900 kw

Get Quotes Whatsapp Engineer

Material

Limestone, marble, barite, calcite, cement raw materials,clinker,desulfurization lime powder, bituminous coal, anthracite, lignite, slag,steel slag manganese ore,coal mine

Application

It's used in cement, electric power, metallurgy, chemical, non-metallic ores and other industries, and focuses on three major fields of non-metallic ores, pulverized coal and slag.

Product Features

Lower Overall Investment

Stable Operation and Convenient Maintenance

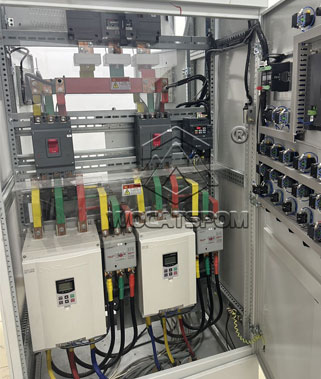

Digitalized Processing for Higher Precision

High Grinding Efficiency with Reduced Repetitive Grinding

High-Efficiency Pulse Dust Collector

Stable Equipment Operation with Low Noise

Specification

ZLM-K Nonmetallic Ore Mill
Model	Capacity(t/h)	Outer diameter of grinding disk(mm)	Center diameter of grinding disk (mm)	Input size(mm)	Moisture of the grinding material (%)	output size	Finished moisture	Main engine motor power(kW)
ZLM1100K	6-9	1520	1100	20	<5	40-198μm D90, 80-400 mesh	≤1%	132
ZLM 1300K	12-13	1870	1300	25	<5		≤1%	200

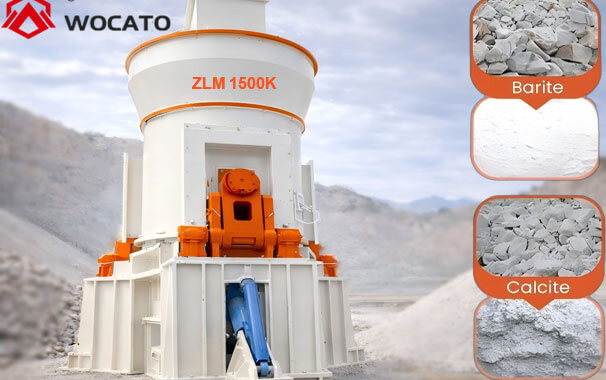

ZLM 1500K	14-20	2180	1500	35	<5		≤1%	280
ZLM 1700K	18-25	2400	1700	35	<5		≤1%	355
ZLM 1900K	25-30	2680	1900	40	<5		≤1%	450
ZLM 2200K	30-40	2900	2200	40	<5		≤1%	560
ZLM 2400K	40-50	3140	2400	40	<5		≤1%	710
ZLM 2800K	50-55	3300	2800	45	<5		≤1%	900
ZLM-M Coal Mill
Model	Capacity(t/h)	Number of grinding rollers	Center diameter of grinding disk (mm)	Input size(mm) (<10mm,90%)	Moisture of the grinding material (%)	Output size (R0.08mm)	Finished moisture	Main engine motor power(kW)
ZLM 1100M	5-10	2	1100	20	<15	Not passed after screening 5-20%	≤1%	110
ZLM 1300M	10-18	2	1300	35	<15		≤1%	185
ZLM 1500M	15-22	2	1500	38	<15		≤1%	250
ZLM 1700M	18-30	2	1700	40	<15		≤1%	315
ZLM 1900M	25-40	2	1900	45	<15		≤1%	400
ZLM 2200M	30-50	2	2200	45	<15		≤1%	500
ZLM 2400M	50-70	3	2400	50	<15		≤1%	710
ZLM 2800M	60-90	3	2800	50	<15		≤1%	900
