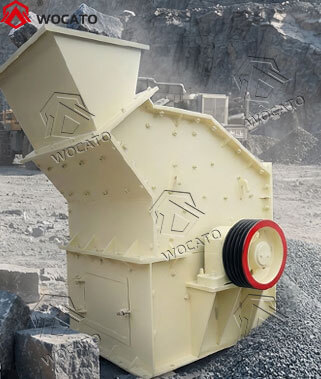

PXJ High Efficiency Fine Crusher

PXJ High Efficiency Fine Crusher is a medium and fine material crusher developed based on the specific conditions of domestic and international stone and sand industries, and it absorbs the latest technology.

Capacity: 20-310 t/h Feeding Size: Max 190 mm Power: Max 315 KW Output Size: 0.5/12/19 mm

Get Quotes Whatsapp Engineer

Material

It can crush medium-hard ores, building aggregates, and industrial waste (such as limestone and recycled concrete).

Application

It is used in sand and gravel aggregates, cement building materials, mineral processing, and environmental recycling.

Product Features

High crushing ratio and high crushing efficiency

The proportion of qualified finished products reaches up to 95%

High output and low energy consumption

Controlled discharge and superior particle size

Easier adjustment system

Longer service life

Specification

Model	Feeding Size(mm)	Feeding Opening Size(mm)	Discharging Size(mm)	Adjustable Size of Discharge Opening(mm)	Capacity(t/h）	Power(kw)
PXJ800×400	≤120	400×185	≤5	5-20	20-45	37-45
PXJ800×600	≤180	500×250	≤5	5-20	35-55	45-55

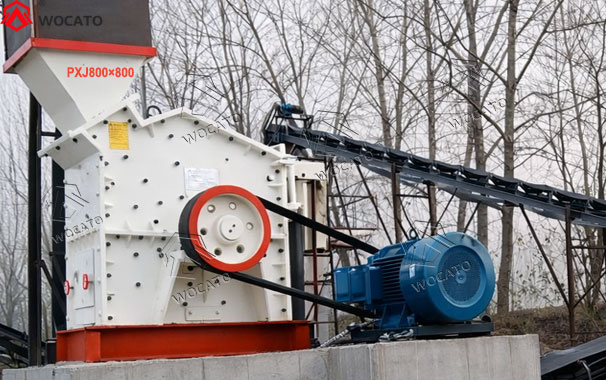

PXJ800×800	≤180	550×330	≤5	5-20	35-65	45-55

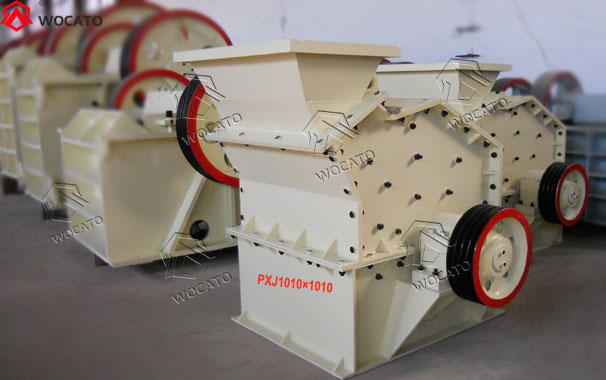

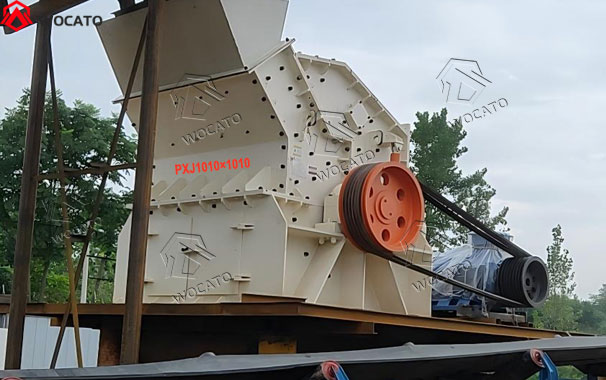

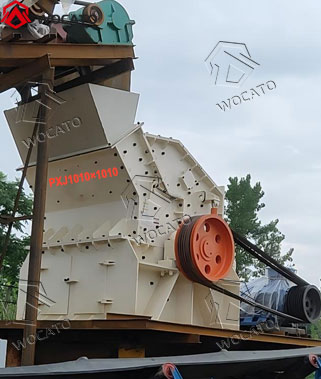

PXJ1010×1010	≤180	1000×350	≤5	5-20	45-75	55-75
PXJ1200×1000	≤180	1200×400	≤5	5-20	70-110	90-110
PXJ1200×1200	≤180	1200×450	≤5	5-20	90-120	110-132
PXJ1400×1400	≤190	1500×500	≤5	5-20	100-150	185
PXJ1600×1600	≤190	1600×550	≤5	5-20	170-250	250

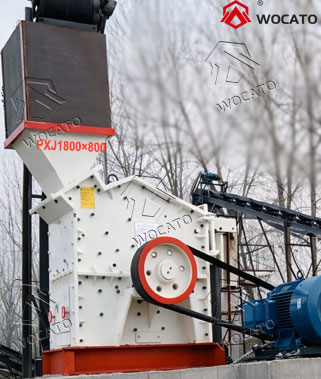

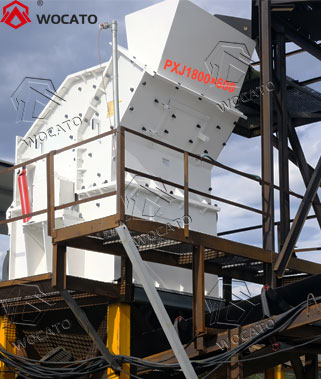

PXJ1800×1800	≤190	1800×800	≤5	5-20	250-310	315
