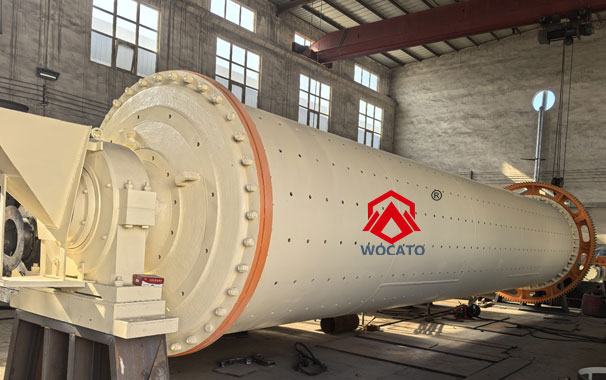

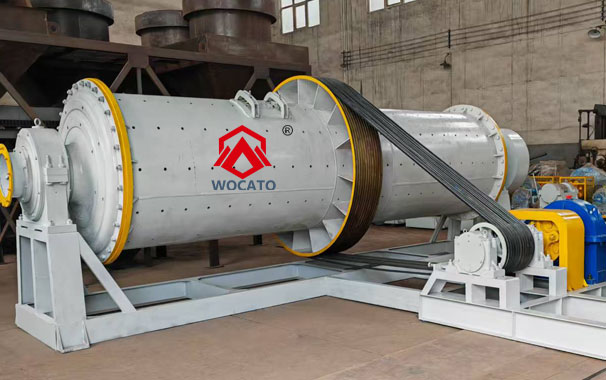

Cement Ball Mill

Cement ball mill: Key equipment for re-crushing materials, ideal for grinding cement (raw materials/finished products) and grindable ores in mining, metallurgy, chemical, and power industries.

Feeding Size: ≤25 mm Capacity: 1.7~87 t/h Power: 55~3550 KW

Get Quotes Whatsapp Engineer

Material

Suitable for grinding cement clinker, limestone, gypsum, ores, and other grindable materials.

Application

Widely used in cement plants, metallurgy, chemical, and power industries for material grinding.

Product Features

Efficient re-crushing for post-crushed materials

Versatile for cement & ore grinding

Stable operation with high grinding capacity

Adaptable to various industrial scenarios

Durable design for long-term use

Low maintenance for continuous production

Specification

Model	Capacity(t/h)	Speed(r/min)	Grinding body (t)	Motor Model	Motor Power(kw)	Gearbox Model	Gearbox Speed ratio	Weight (t)
φ1.2x4.5	1.7	30.43	5	YE3-280M-6	55	ZD35-10	5.6	14.7
φ1.2x4.5	1.7	30.43	5	YE3-280M-6	55	ZD35-10	5.6	14.7
φ1.5×5.7	4.5	26.3	12	YE3-355M1-8	132	ZD40-7	4	23.2
Φ1.83×6.4	8.5	23.9	18	YE3-355L-8	200	ZD60-8	4.5	34.5
Φ1.83×6.4	8.5	23.9	18	YE3-355L-8	200	ZD60-8	4.5	34.5
φ1.83x7	11	23.9	20	YE3-3552-8	250	ZD60-8	4.5	36.2
φ2.2x6.5	16	21.4	28	YE3-3553-8	315	ZD70-9	5	52.6
φ2.2x7.5	16-21	21.4	32	YE3-4002-8	400	ZD70-9	5	57.5
φ2.4×7	17-19	21	36	YR5006-8	500	ZD80-9	5	63.9
φ2.4×11	19-21	20.3	60	YR630-8	630	JD630/ZS82.5-7	6.3	99.4
φ2.4×13	35-38	19.4	65	YR5604-8	800	MBY710-6.3	6.3	120
φ2.6x13	50-55	19.6	80	YR6302-8	1000	MBY800-7.1	7.1	133.5
φ3x9	28-32	18.5	78	YR6302-8	1000	MBY800-6.3	6.3	139
φ3x11	45-48	17.7	97	YR118/74-8	1250	Zi314	42.39	169
φ3x13	33-37	18.08	108	YR1250-8	1250	MBY900-6.3	6.3	172
φ3.2x13	45-50	17.8	128	YR1600-8	1600	MBY1000	12.35	218
φ3.5x13	55-60	16.5	152	YR2000-10	2000	8J2240	43.02	280
φ3.8x13	60-62	16.3	170	YR2500-10	2500	MFYX250	44.9	320
φ4×13	80-85	15.95	202	YRKK900-8	2800	JS130-8	46.7	350Excluding transmission parts
φ4.2x13	85-87	16.3	224	YR1000-8	3530	JQS3550	15.6	420Excluding transmission parts
