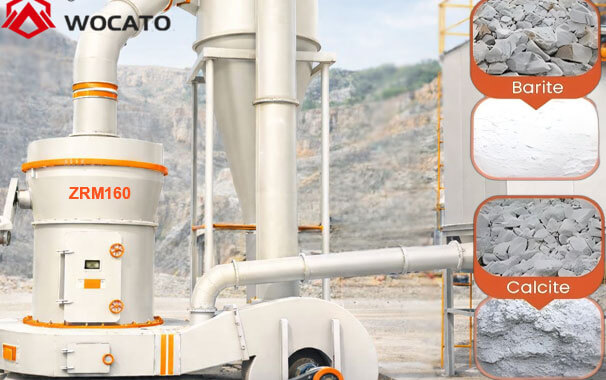

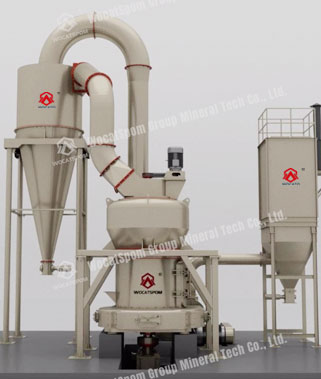

ZRM Raymond Mill

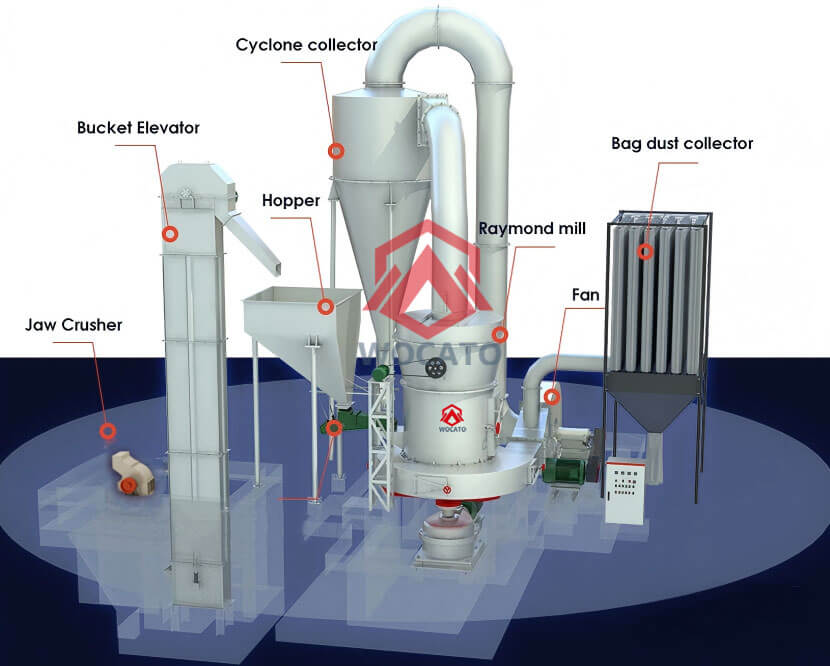

Raymond mill occupies a small area and has strong integration capabilities. Raymond mill can form an independent production system from lump materials, crushing to finished powder and packaging.

Capacity: 3~25 t/h Feeding Size: ≤35 mm Output Size: 0.038~1.6 mm(≤400mesh） Power: 37~135 kw

Get Quotes Whatsapp Engineer

Material

Limestone,calcite,calcium carbonate,dolomite,barite,talc,gypsum,diabase,quartzite,bentonite,etc.

Application

Calcium carbonate crushing processing,gypsum powder processing,power plant desulfurization，non-metallic ore pulverizing,coal powder preparation,etc.

Product Features

Vertical Structure Design

High-Efficiency Grinding Principle

Advanced Classifying System

Dry Production System

Wear-Resistant Core Parts

Intelligent Control System

Specification

Model	ZRM100	ZRM130	ZRM160
Grinding Rollers(pcs)	4	4/5	5/6
Roller Diameter × Height (mm)	Φ310×170	Φ410×210	Φ440×270
Grinding Ring Diameter × Height	Φ950×170	Φ1280×210	Φ1600×270
Main Engine Speed(r/min)	130	103	82
Maximum Feed Size(mm)	<25	<30	<35
Finished Particle Size(mm)	1.6—0.045 Fine Powder Can Reach 0.038mm(400mesh)	1.6—0.045 Fine Powder Can Reach 0.038mm(400mesh)	1.6—0.045 Fine Powder Can Reach 0.038mm(400mesh)
Capacity(t/h)	3.0-8.0	6.0-11.0	9.0-22.0
Dimensions (L×W×H, mm)	7100x5900×7900	9200×7250×9700	12550×5700×8355
Host Motor Power(kw)	37	75	132
Powder Separator Motor Power(kw)	5.5	7.5	18.5
Induced Fan Motor Power(kw)	37	75	132/160
Electromagnetic Vibrating Feeder Model	GZ2F	GZ3F	GZ3F
Electromagnetic Vibrating Feeder Power(kw)	0.15	0.2	0.2
