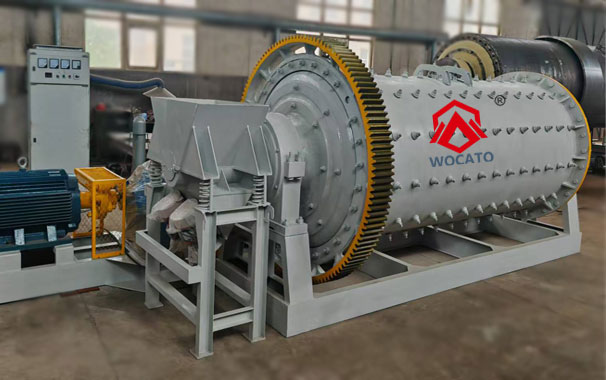

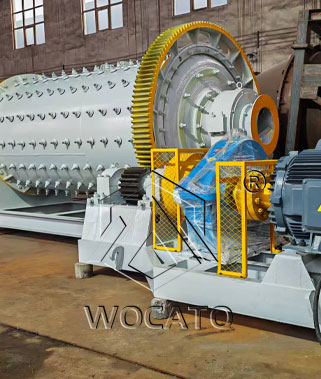

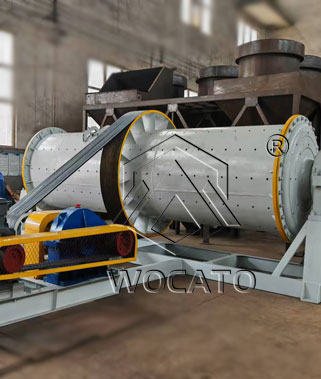

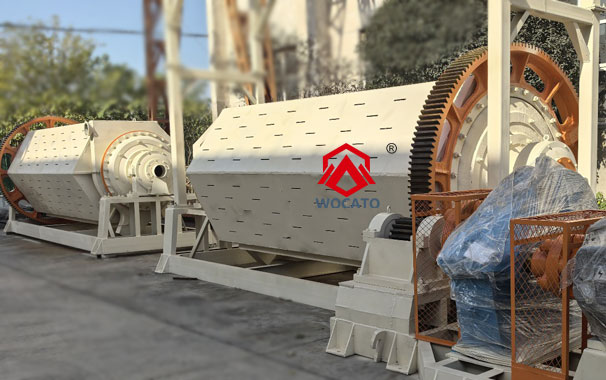

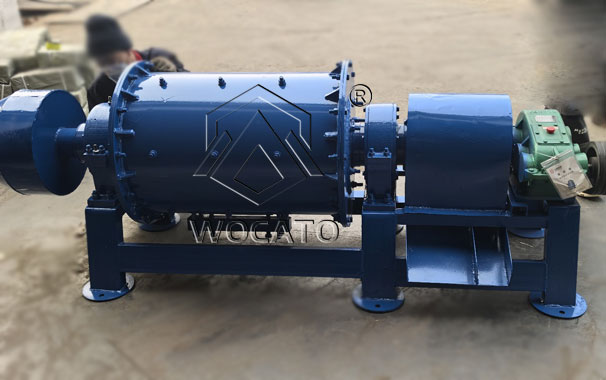

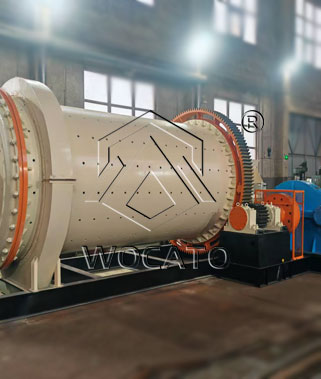

Ball Mill

Ball mill is a key high-fineness grinding machine for re-crushing materials, widely used in mineral beneficiation, cement and refractory industries.

Feeding Size: ≤25 mm Capacity: 0.65~620 t/h Output Size: 0.074~0.89 mm Power: 18~4500 KW

Get Quotes Whatsapp Engineer

Material

Suitable for grinding various ores and grindable materials (e.g., metal ores, cement clinker, ceramics raw materials).

Application

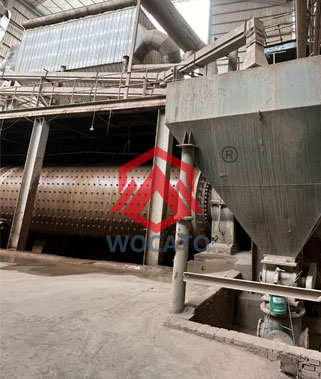

Ideal for metal beneficiation, cement plants, building materials, chemical, refractory, and glass-ceramic industries.

Specification

Model	Shell Rotation Speed(r/min)	Ball Load(t)	Feeding Size(mm)	Discharging Size(mm)	Capacity(t/h)	Motor Power(kw)	Total Weight(t)
φ900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
φ900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98

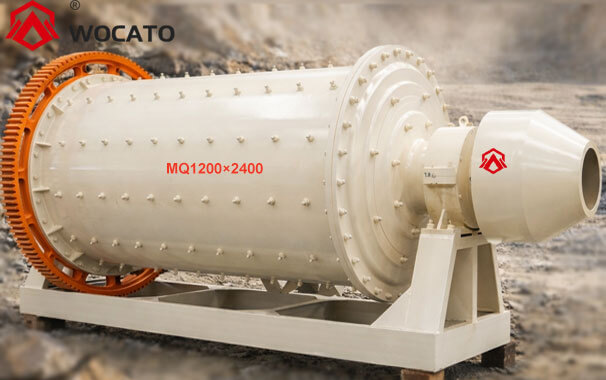

φ1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
φ1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
φ1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
φ1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
φ1500×4500	27	11	<25	0.074-0.4	3-6	110	22
φ1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
φ1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
φ1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
φ1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
φ1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
φ2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
φ2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
φ2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
φ2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
φ2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
φ2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
φ2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
φ2400×3000	21	23	<25	0.074-0.4	7-50	245	58
φ2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
φ2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
φ2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
φ3200×4500	18	65	<25	0.074-0.4	Determined by process conditions	630	149
φ3600×4500	17	90	<25	0.074-0.4		850	169
φ3600×6000	17	110	<25	0.074-0.4		1250	198
φ3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
φ4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
φ4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
φ4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
φ4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
φ5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
φ5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
φ5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525
