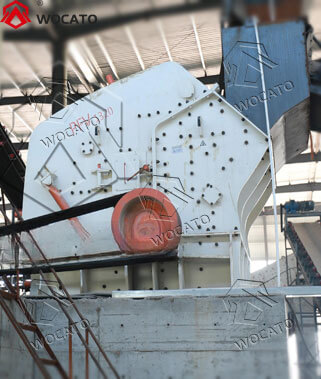

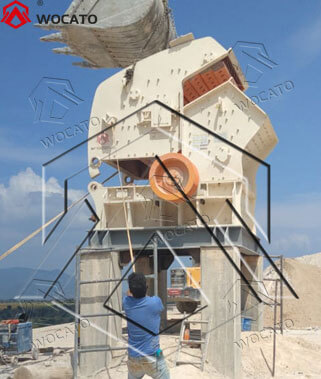

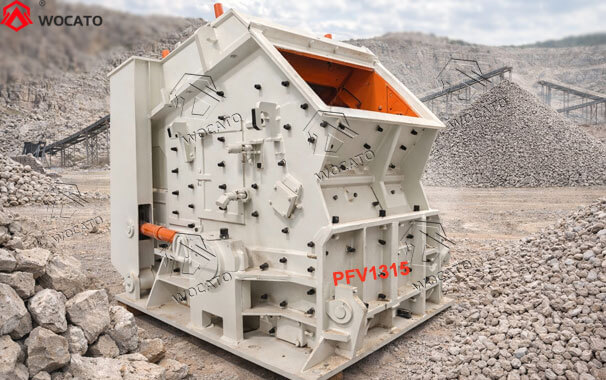

PF Impact Crusher

The PF Impact Crusher is an irreplaceable crushing equipment for high-grade sand and gravel.

Capacity: 15-800 t/h Feeding Size: Max ≤800 mm Power : 45-710 KW

Get Quotes Whatsapp Engineer

Material

The PF Impact Crusher can crush stone (granite, limestone, concrete, etc.) with a maximum feed size of 500 mm and compressive strength less than 350 MPa.

Application

It is widely used for crushing materials in mining, highway, railway, construction, etc.

Product Features Parameter Related Products Related Cases Contact Sales

Product Features

High-chromium and unique impact liner

High efficiency and low energy consumption

Discharge particle size can be flexibly adjusted

Cubic product shape and simplified processing flow

Special structural design

Capable of crushing hard rock

Specification

Model	Specification	Feed Opening Size(mm)	Feeding Size(mm)	Capacity(t/h)	Motor Power(kw)	Overall Dimension(mm)
PF-1007	Φ1000×700	400×730	≤250	15-60	45	2319×1654×2558
PF-1010	Φ1000×1050	400×1080	≤300	50-90	55	2319×1654×2558
PF-1210	Φ1250×1050	450×106	≤300	80-150	90	2585×2053×2809

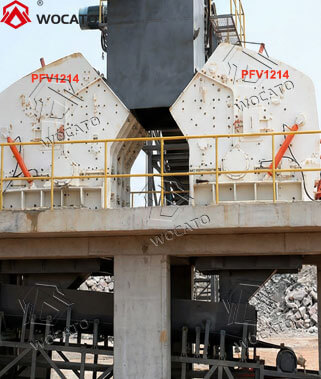

PF-1214	Φ1250×1400	450×1060	≤300	100-200	132	2582×2403×2809

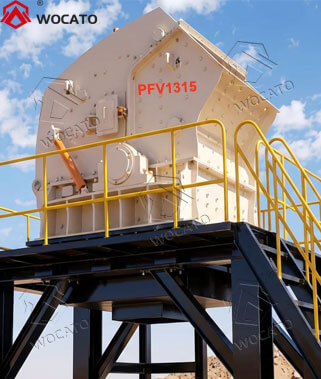

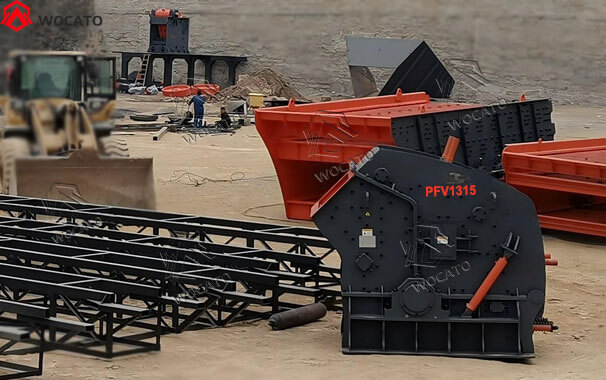

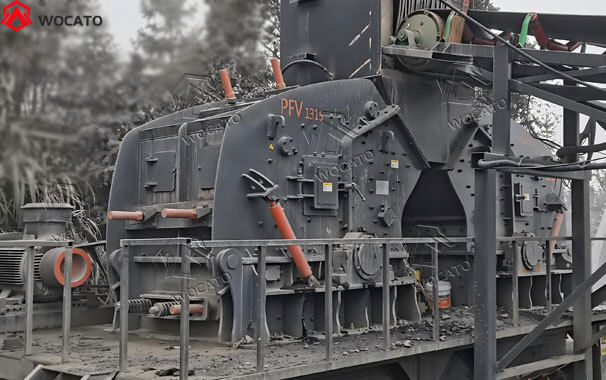

PF-1315	Φ1320×1500	450×1440	≤350	130-280	200	2930×2761×3053

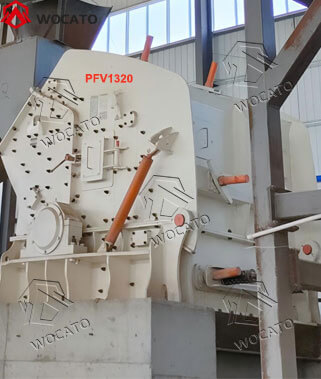

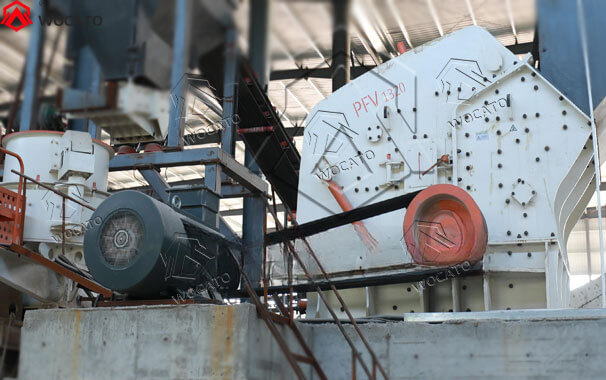

PF-1320	Φ1320×2000	550×1530	≤500	180-400	280	3224×3175×2706
PF-1520	Φ1500×2000	550×1530	≤700	300-550	（220-250）×2	3224×3175×2706
PF-1820	Φ1800×2000	1260×2040	≤800	600-800	（220-250）×2	4400×3866×4009

Wocatspom can provide customers with technical services on original products and spare parts to ensure worry-free operation.
