HP Multi-Cylinder Hydraulic Cone Crusher

Compared to spring cone crushers, the HP Multi-Cylinder Hydraulic Cone Crusher is the latest generation of hydraulic cone crusher in the mining and construction industry.

Capacity: 90-1200 t/h Feeding Size: Max ≤ 450 mm Power: 160-830 KW

Get Quotes Whatsapp Engineer

Material

HP Multi-Cylinder Hydraulic Cone Crusher is suitable for crushing materials of medium and above hardness, including various minerals and rocks such as limestone, iron ore, pebbles, non-ferrous metal ore, granite, basalt, quartzite, and sandstone.

Application

It is widely used in mining and construction industries.

Product Features

High crushing efficiency

Super production capacity

Perfect finished particles

Advanced lubrication mechanism

Unique patented design

Excellent high stability of the operation

Specification

Model	Cavity Type	Feeding size	Closed Side Feeding Size	Minimum Discharge Opening	Motor Power	Capacity(t/h)
HP200	C2 Coarse	235(mm)	190(mm)	19(mm)	4P 160(kw)	90-250
	MMedium	171(mm)	120(mm)	16(mm)
	F1 fine	150(mm)	95(mm)	13(mm)
	F2 Extra fine	116(mm)	70(mm)	8(mm)

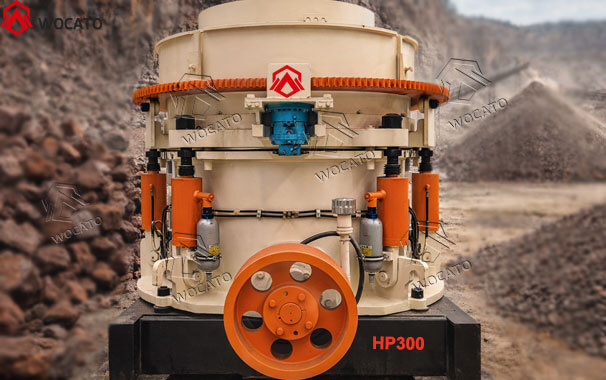

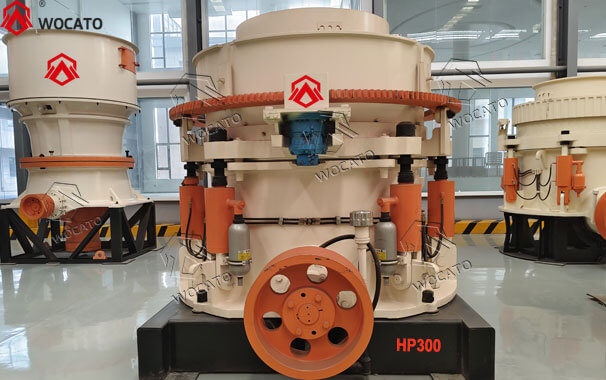

HP300	C1 Extra coarse	265(mm)	230(mm)	25(mm)	4P 220(kw)	115-440
	C2 Coarse	240(mm)	210(mm)	20(mm)
	M Medium	190(mm)	150(mm)	15(mm)
	F1 Fine	145(mm)	105(mm)	11(mm)
	F2 Extra fine	120(mm)	80(mm)	8(mm)
HP400	C1 Extra coarse	360(mm)	290(mm)	30(mm)	4P 315(kw)	140-630
	C2 Coarse	310(mm)	250(mm)	25(mm)
	M Medium	260(mm)	196(mm)	20(mm)
	F1 Fine	182(mm)	110(mm)	13(mm)
	F2 Extra fine	135(mm)	90(mm)	10(mm)
HP500	C1 Extra coarse	370(mm)	330(mm)	38(mm)	4P 400(kw)	175-790
	C2 Coarse	320(mm)	290(mm)	28(mm)
	M Medium	245(mm)	210(mm)	22(mm)
	F1 Fine	180(mm)	130(mm)	13(mm)
	F2 Extra fine	150(mm)	95(mm)	10(mm)
HP800	C1Extra coarse	450(mm)	352(mm)	38(mm)	4P 830(kw)	260-1200
	C2 Coarse	373(mm)	298(mm)	32(mm)
	M Medium	340(mm)	275(mm)	25(mm)
	F1 Fine	280(mm)	230(mm)	16(mm)
	F2 Extra fine	235(mm)	150(mm)	10(mm)
