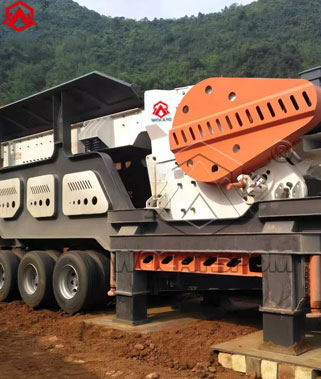

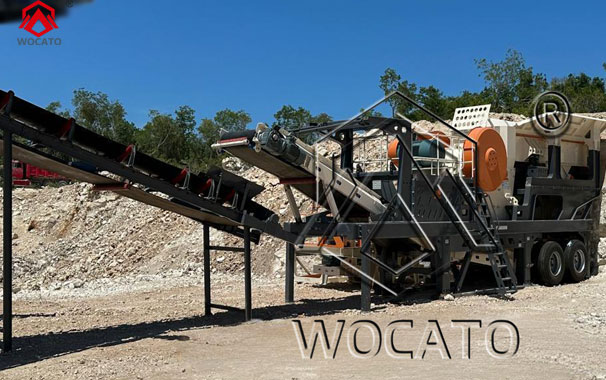

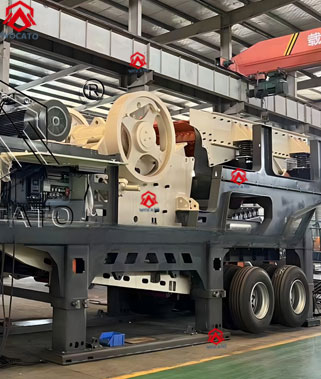

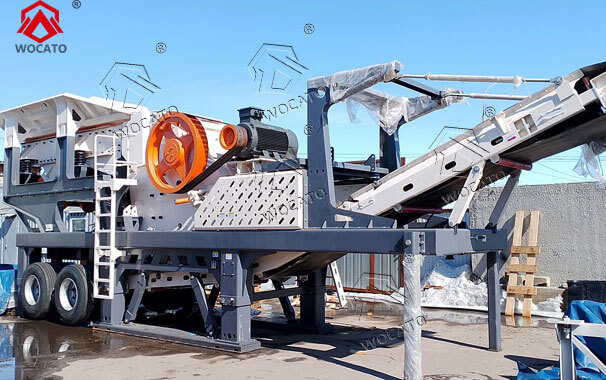

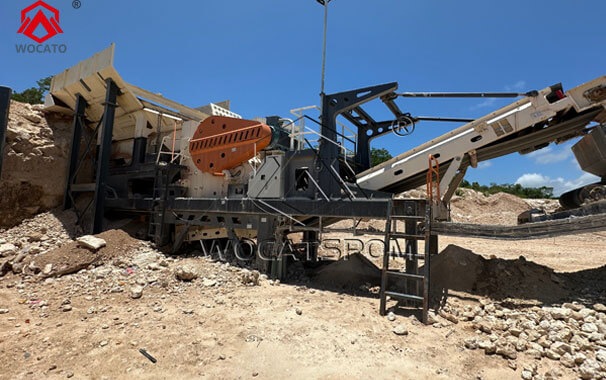

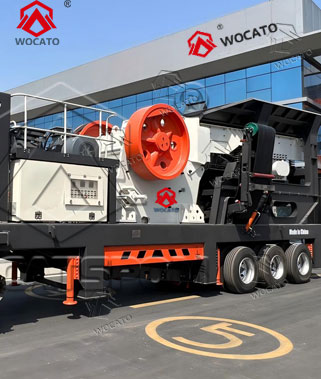

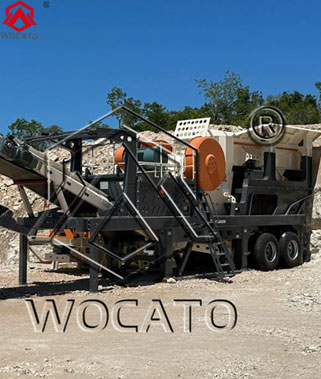

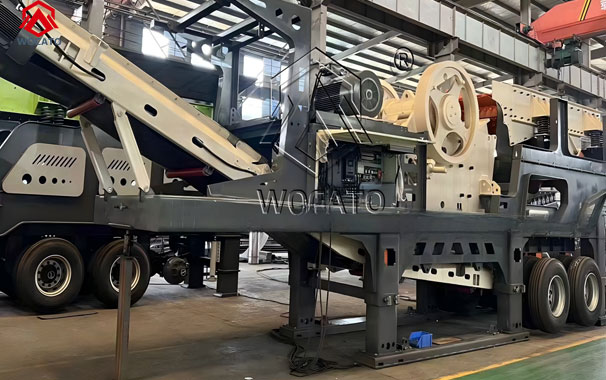

K3 Mobile Wheeled Jaw Crusher

The wheeled mobile crushing plant is suitable for primary crushing operations on soft to hard rock. Its integrated design features a large-capacity hopper, pre-screening feeder, and hydraulic outriggers to achieve efficient crushing operations.

Capacity: 50-300 t/h Feeding: ≤750 mm Output: 70~200 mm

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

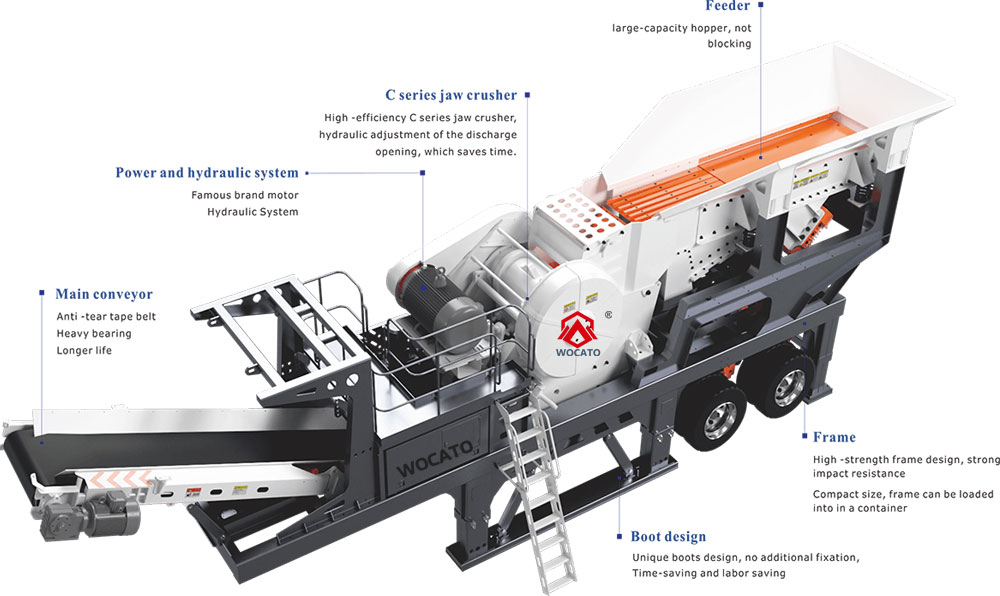

Product Features

The Wheel-Mounted Jaw Crusher uses the Cseries high-efficiency jaw crusher to meet the crushing needs of raw materials of various hardnesses. The unique starting design achieves rapid input. The equipment adopts an integrated structure design, which can operate as a stand-alone machine or in combination with the mobile fine crushing plant to form a mobile crushing station. Advantages of the K3 portable jaw crusher: flexible movement, convenient installation and commissioning, high degree of intelligence, and rapid production.

All-in-One Solution: Crush, Screen, Convey.

Compact structure & small footprint

Compact, mobile, and easy to relocate via standard trailer truck

Quick into production,Fast return on investment

Hi-quality output 3-4 aggregates sizes

Suitable for medium-scale, quick transfer.

Specification

Model	K3-C96/PE69-2C	K3-C106-2C	K3-PE750-2C	K3-C116-2C	K3-C110-2C	K3-C120-2C
Vibrating feeder	GZD3896	GZD1142	GZD1142	GZD1142	ZSW1349	ZSW1349
Jaw crusher	C96/PE69	C106	PE750*1060	C116	C110	C120
Main belt	B800(32")*9.6m	B1000(40")*8.7m	B1000(40")*8.7m	B1200(47")*8.7m	B1200(47")*10m	B1200(47")*10m
Capacity	80-150(t/h)	100-200(t/h)	100-200(t/h)	150-250(t/h)	200-300(t/h)	200-400(t/h)
Motor Power	90/75kw	110kW	110kW	132kW	160kW	160kW
