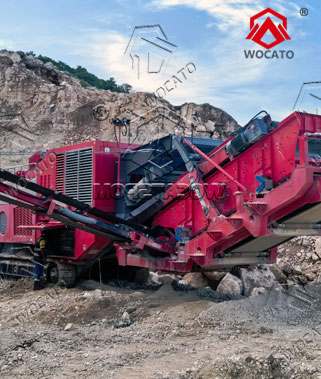

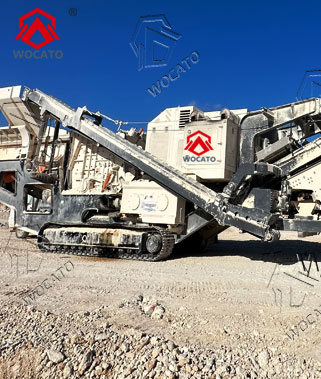

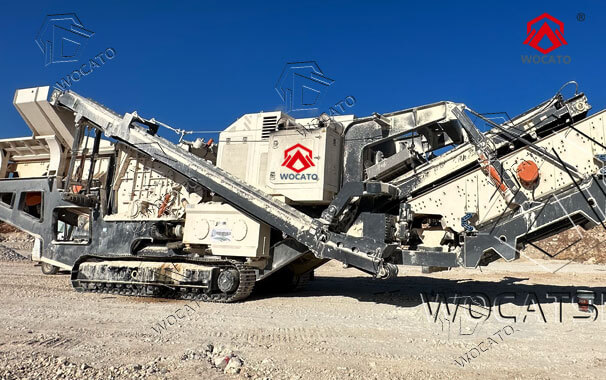

Mobile Tracked Impact Crusher

Track‑mounted impact crushers for primary and secondary construction material crushing.

Capacity: 60~500 t/h Feeding: ≤800 mm Output: 5mm~30 mm Power: 80 kw~400 kw

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

Product Features

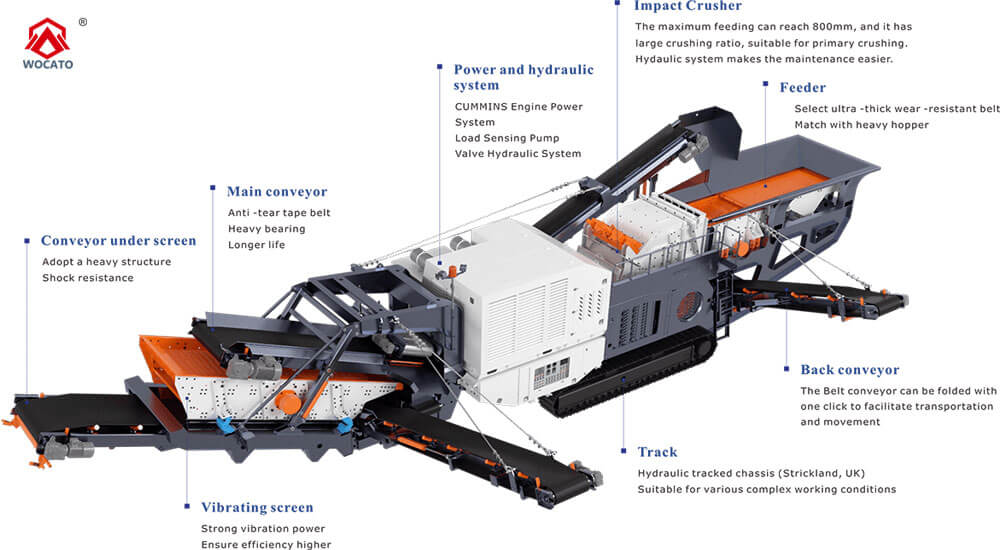

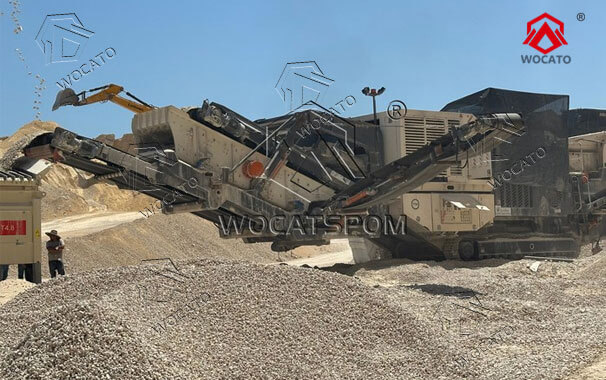

Track-mounted impact crushers are designed for primary and secondary crushing of construction materials in demolition/recycling/quarrying and mining applications and incorporate thick, heavy-duty blow bars for longer life and use. This high-performance, multifunctional mobile crushing equipment features a large-capacity double-deck screen and return conveyor; it can replace stationary crushing systems, reducing the need for hauling and, therefore, operating costs.

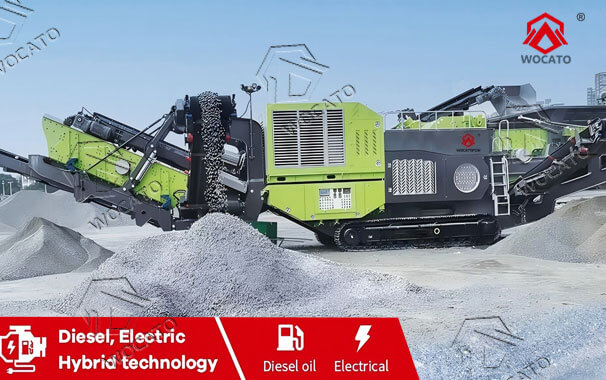

Diesel-Electric Hybrid Power: Ensures fuel efficiency and lower emissions.

No need installation or assembly; Rapid return on investment.

Capable of producing 3-4 aggregate sizes simultaneously.

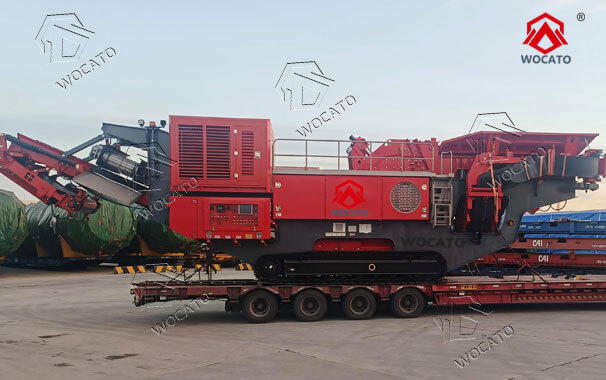

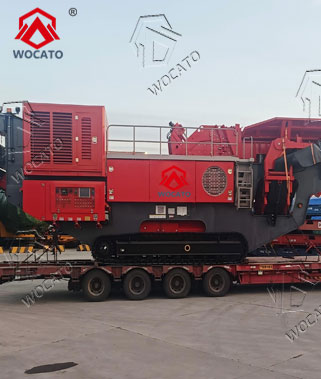

Strong mobility for fast relocation between sites；Automated start&stop, remote control, PLC system, etc.

Configure metal separator,the belt speed sensor and other Customized solutions.

Lifetime technical support & original spare parts service.

Specification

Model	TF150	TF250	TF350
Impact Crusher	LF150	LF250	LF350
Maximum feeding size	500mm	700mm	800mm
Capacity	90-150t/h	100-200t/h	200-400t/h
Motor Power	160kW	250kW	280kW
Power Source	Diesel & Electric / Grid Power
Optional Return screen	2YK1530/3YK1530	YK1640/2YK1640	YK1740
Vibrating Screen Power	Vibration motor 3.7kW2/3kW2	Vibration motor 3.7kW*2	Vibration motor 3.7kW*2
Support Type	ROST Spring	ROST Spring	ROST Spring
Generator set	250kW / 275kW CUMMINS	450kW / 480kW CUMMINS	480kW CUMMINS
Electrical System	The impact crusher motoris started by frequency conversion,the feeder is started by frequency conversion,and other motors are started directly.
