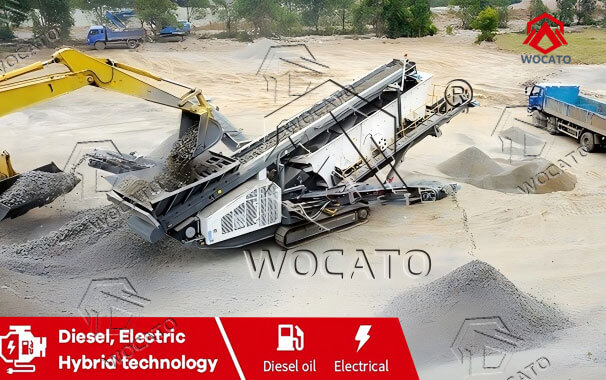

Mobile Tracked Screening Plant

The mobile track screen delivers high capacity and precise screening with its large hopper.

Capacity: 65~586 t/h Feeding: ≤200 mm Power: 360 kw Generator

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstone, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

Product Features

Mobile Track-mounted Vibrating Screen is equipped with a large-capacity hopper, delivering outstanding production capacity and precise separation for screening sand, gravel, aggregates, or recycled and demolition materials. It can operate independently or be integrated into a complete crushing and screening plant, offering flexible combinations and greatly expanding application fields. The tracked screen unit utilizes high efficiency inclined vibrating screen boxes.Robust tracks ensure excellent on-site positioning and mobility together with operational stability.Variable speed forward and side product conveyors are hydraulically operated and easily stowed for transport.

Durable screens & fast setup: Robust design ensures reliability with quick preparation times.

High mobility: Heavy-duty, low-ground-pressure tracks provide maximum mobility.

Flexible & efficient screening: High-efficiency inclined vibrating screen boxes deliver exceptional capacity and precise separation for various materials.Available with two-deck or three-deck screen models to meet diverse customer requirements.

Powerful drive system: High-torque travel motor for smooth movement in tough conditions.

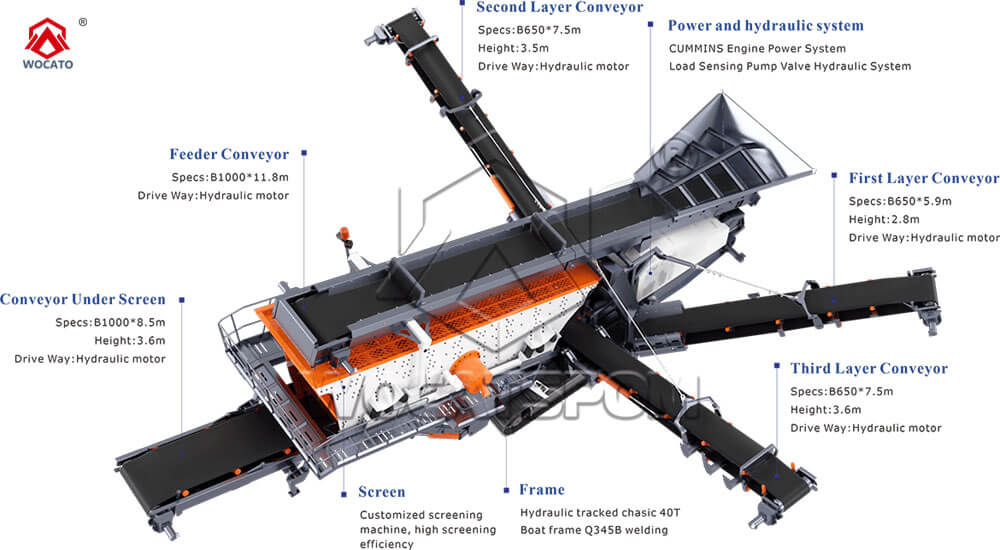

Hydraulic conveyors: Variable-speed side and forward product conveyors are hydraulically driven and fold easily for transport.

Advanced control & diagnostics: Equipped with an intelligent control panel with fault detection functions. Easy maintenance

Specification

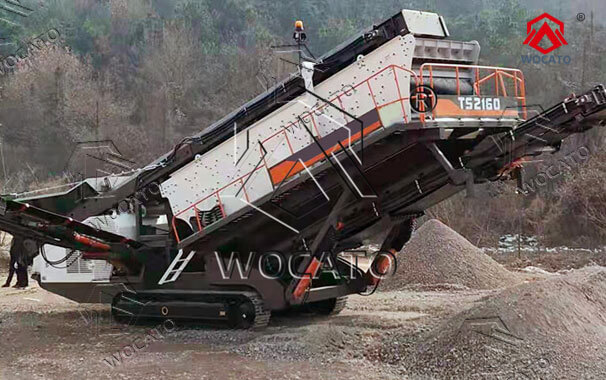

Model	TS1860	TS2160
Vibrating Screen	3YZK1860	3YZK2160
Maximum feeding size	≤200mm	≤200mm
Capacity	65-586t/h	81-720t/h
Motor Power	22KW	30KW
Feeding belt conveyor	B1000(40")*11.8m	B1000(40")*11.8m
Conveyor motor	15kW	15kW
Main Power Source	Diesel-electric, Pure Electric, Hydraulic
Engine Power	125kW (Diesel-electric), 154kW (Hydraulic), 93kW (Pure Electric)
Screen Surface	3000×3200	3000×3200
Volume	9.6m³	9.6m³
Opening Mode	Hydraulic	Hydraulic
Grizzly Screen Box (Optional)
